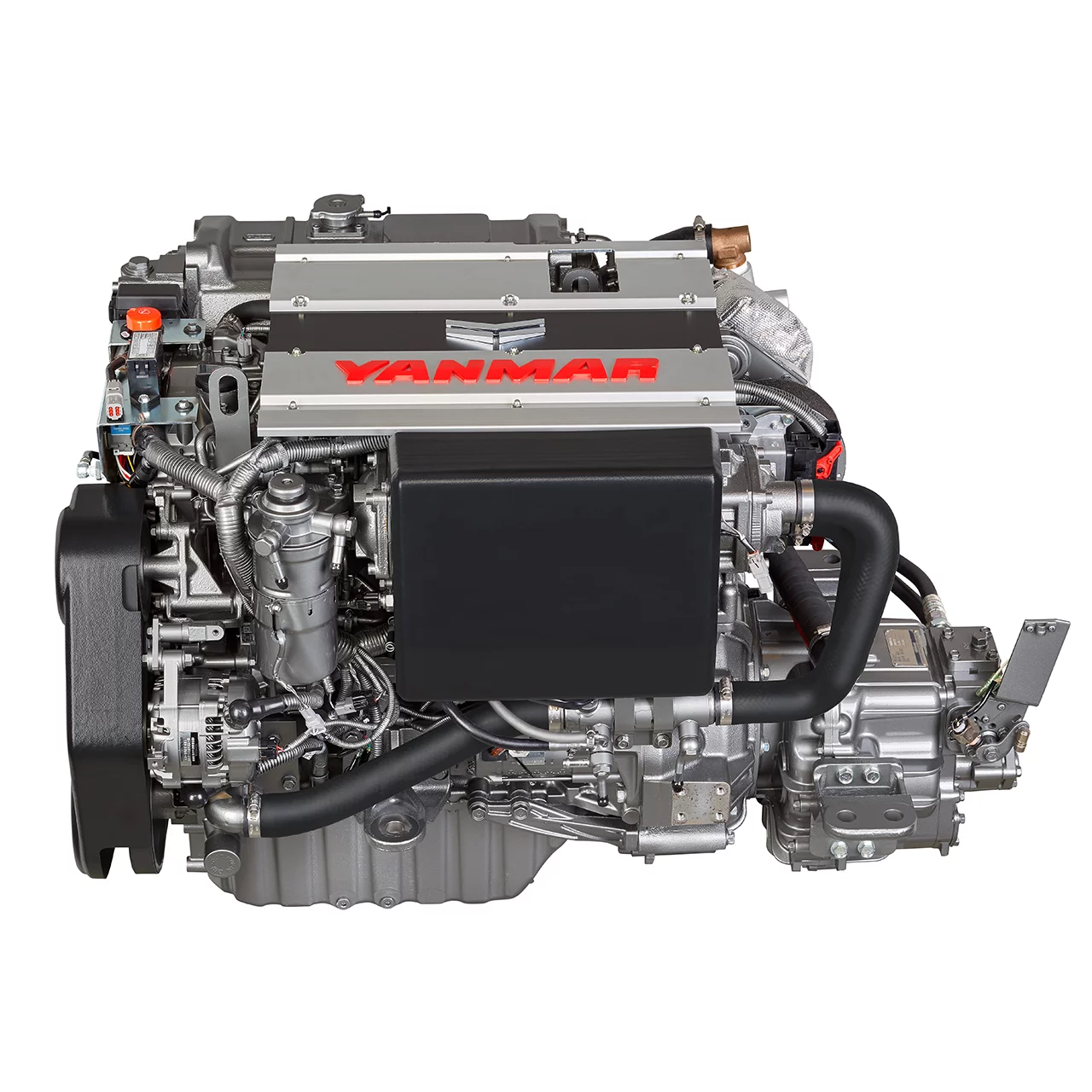

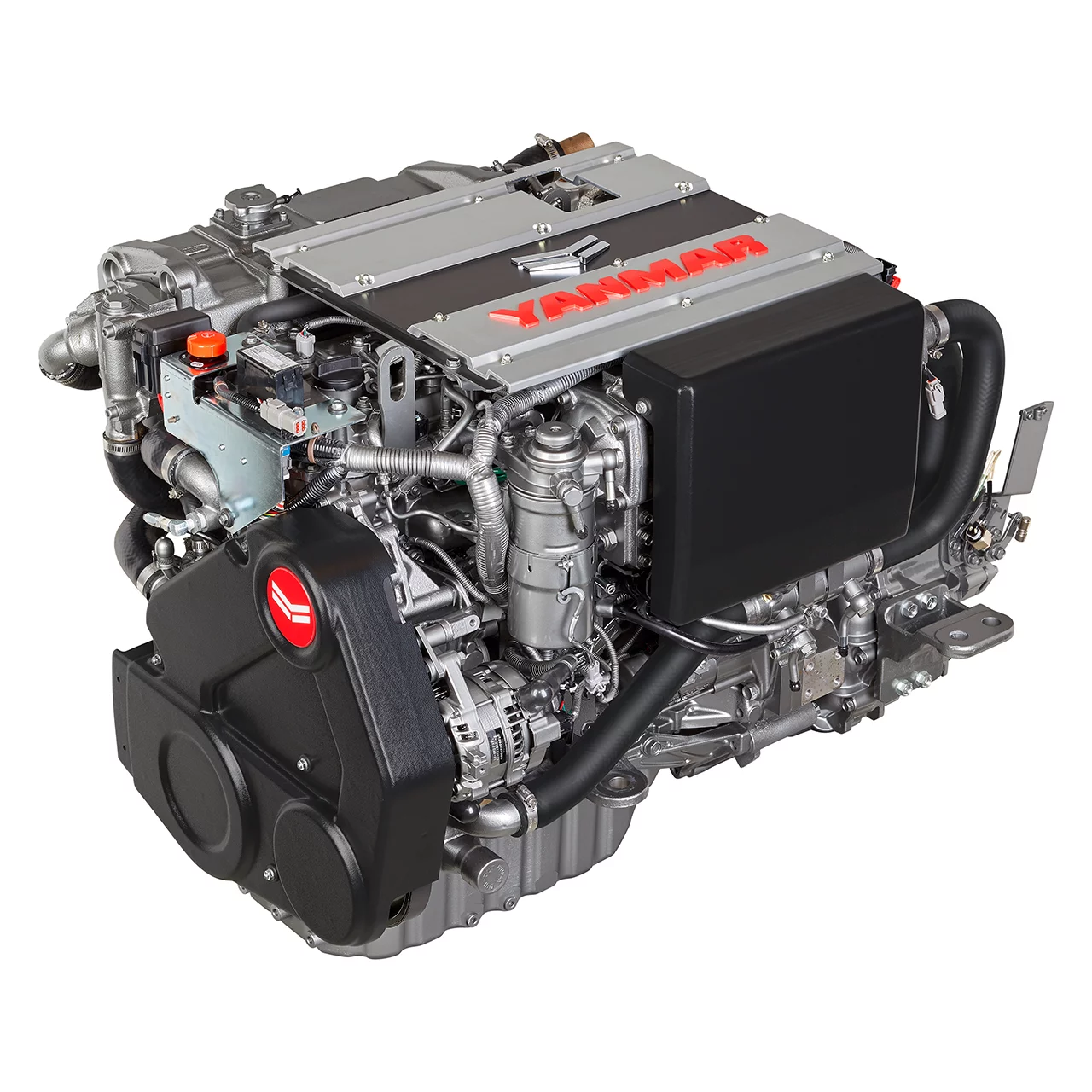

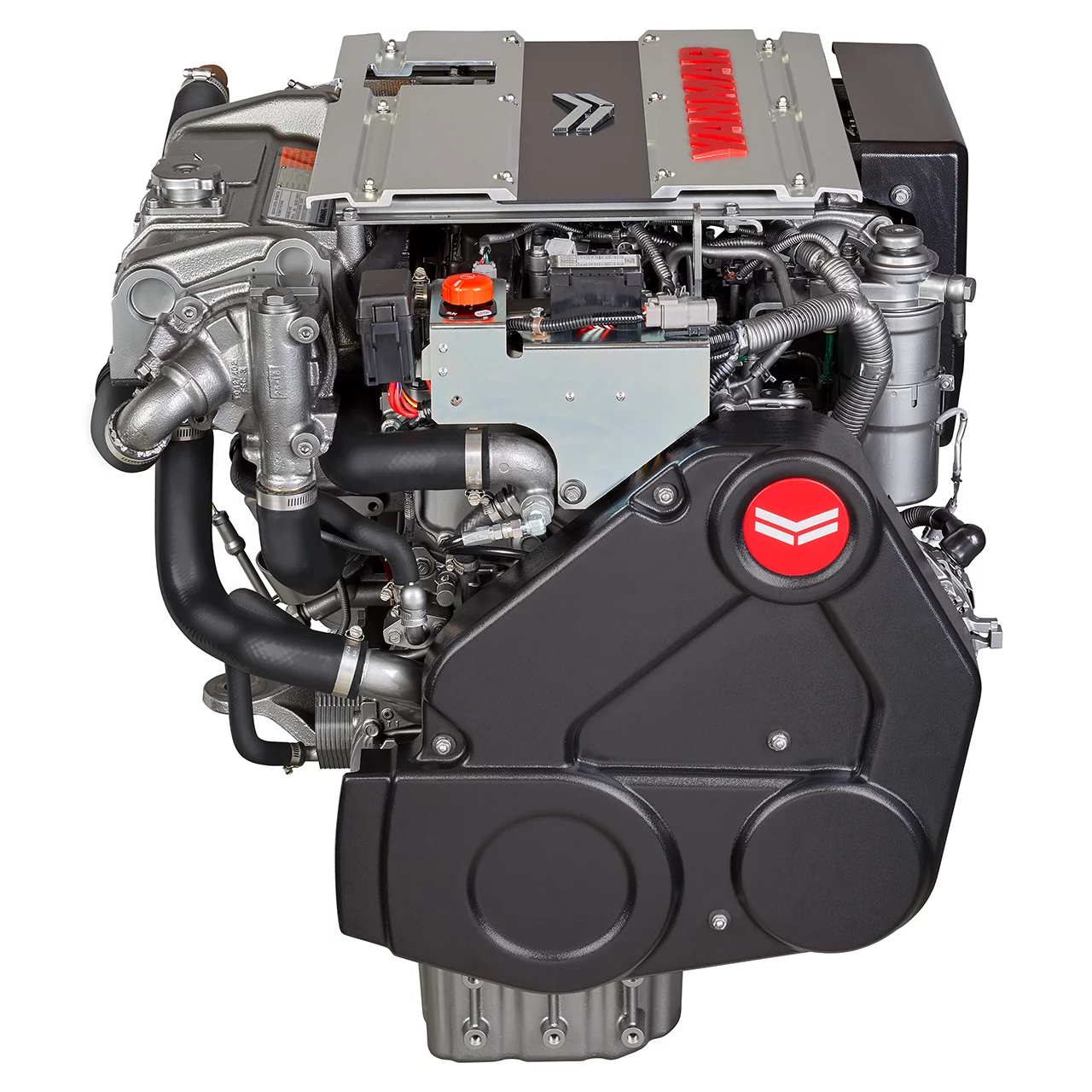

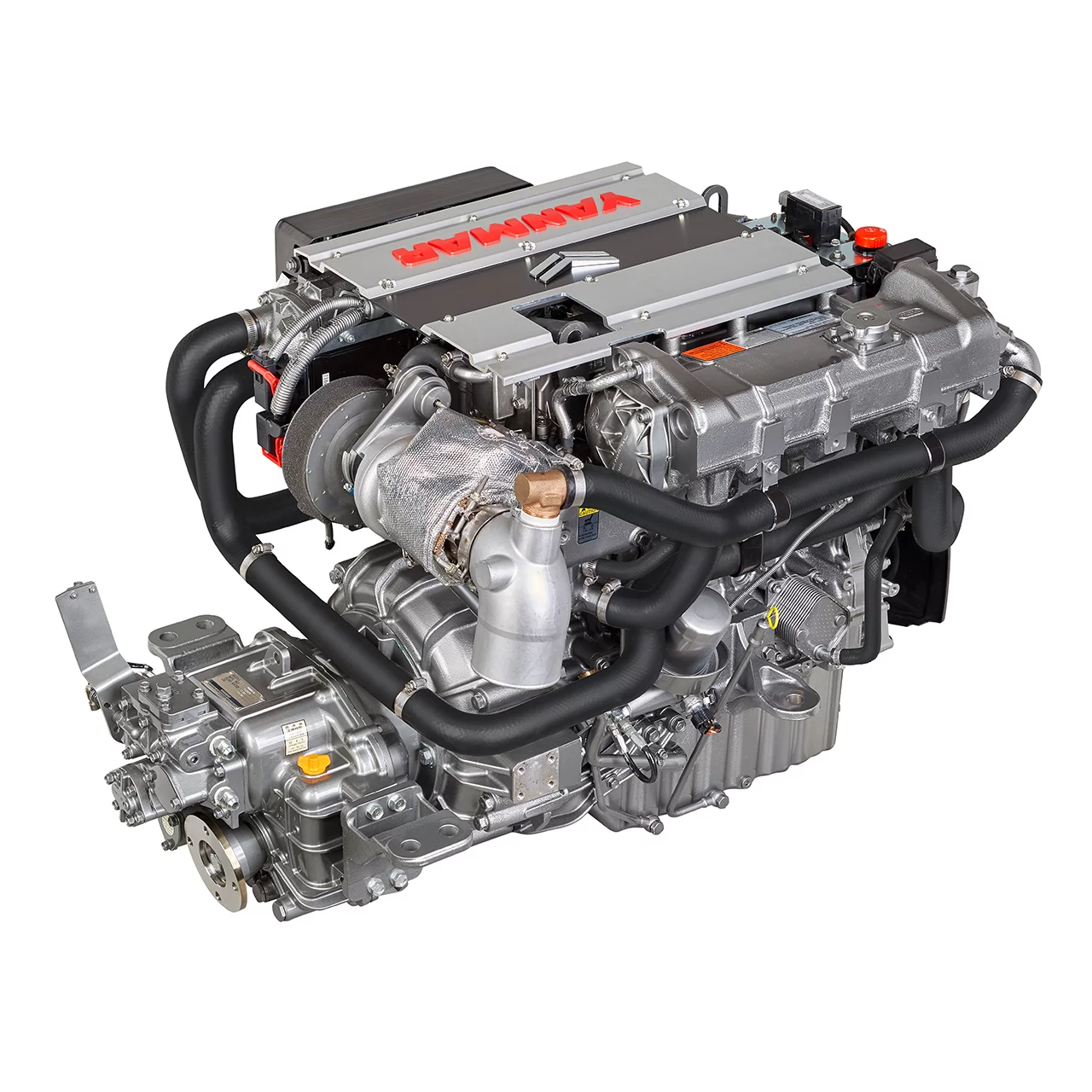

Yanmar 4LV150 Marine Engine
Part No: 4LV150
Yanmar
- Rated Output: 110 kW / 150 mhp
- Rated Speed: 3500 rpm
- No. of cylinders: 4 cylinders
- Combustion system: Direct Injection, Denso Common Rail System
- Aspiration: Turbocharged & Intercooled
- Dry weight without gear:334 kg / 736 lbs
- Controls: Mechanical (optional – VC10 system)
- Certifications: RCD 2 EPA Tier 3 EPA Tier 3C BSO II EMC SOLAS
Description
Standard Engine Package
- Exhaust mixing elbow [L-type]*
- Through drive exhaust**
- Alternator 12V – 130A
- B25 panel*
- VC10 Vessel Control System**
- Power steering**
- Mechanical throttle sensor*
- Flexible mounts
- Fresh water expansion tank
*Inboard model
**Sterndrive model
Optional Accessories
- High-riser mixing elbow [instead of L-elbow]*
- Through hull exhaust**
- Secondary alternator 12V – 130A or 24V – 110A including smart regulator
- Extension harness [3m, 5m, 10m, 20m]
- Second station
- C35 panel*
- Sidemount control head*
- VC10 Vessel Control System*
- JC20 Inboard Joystick*
- JC10 Sterndrive Joystick**
- NMEA2000 Engine monitoring system
- Internal tie-bar
- Semi 2-pole
- SOLAS including Certificate [factory fit only]
- Hot water connection
- Water separator
- Man Over Board Switch (single)
- C-Type trolling (KMH50 only)*
- On-board spare parts kit
Additional information
| Brand | Yanmar |
|---|---|
| Cooling | Water Cooled |
| Cylinders | 4 |
| Emissions | EU Stage III B / Tier 4i |
| Max Power kW | Over 100 kW |
