SHP 720-1500 Generator
Part No: SHP 720-1500

  • Powered By Perkins Engines
  • Stamford Alternator
  • 746 kVA – 1511 kVA Prime
  • 5oHz 3 Phase Configuration

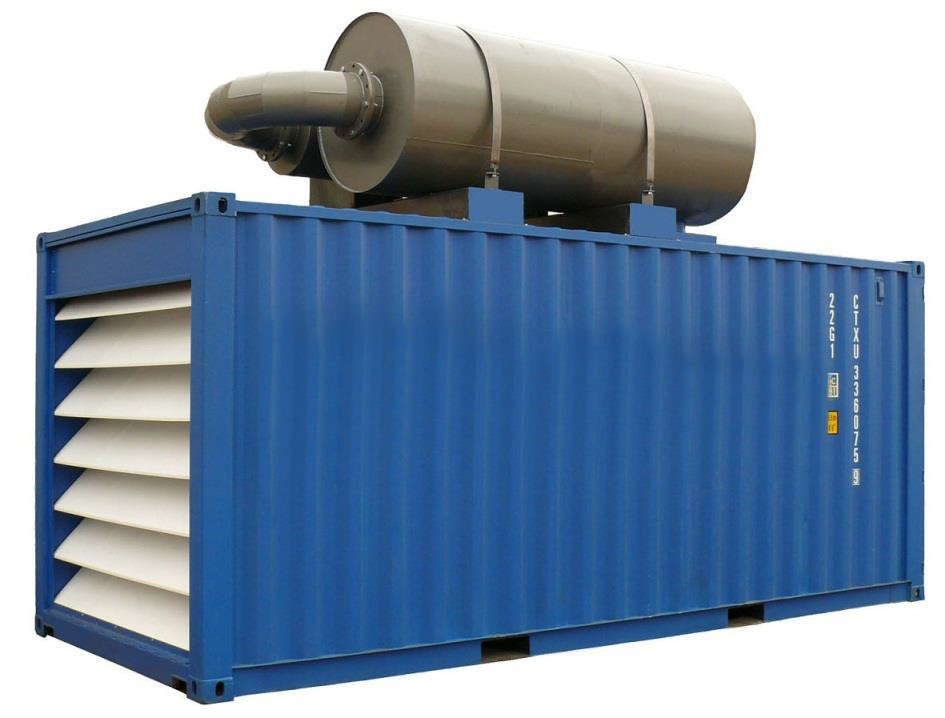

  • Canopy Optional

SKU: SHP 720-1500 Category:

Description

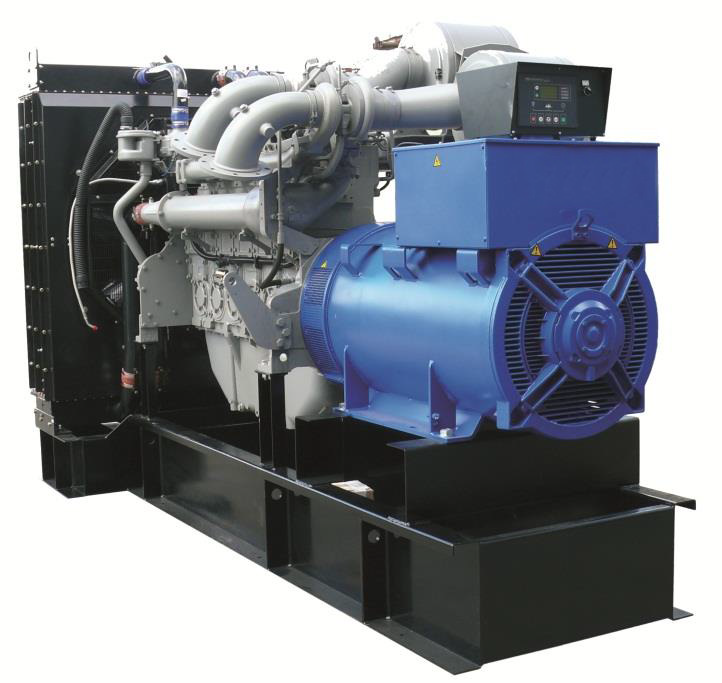

The SH 720-1500 model diesel generator is preconfigured for a 3-phase 50Hz output. This range of generators isone of our largest most powerful generators available. These generators are powered by the world-renowned Perkins model engines and coupled to a Stamford alternator to provide consistent power and reliability. All our generators are assembled in the UK.

Strong & Corrosion Resistant

  • British steel base frame, coated with polyester powder coat at over 200 degrees C.
  • High quality, ISO R898 structural bolts, Zinc coated for excellent corrosion resistance.
  • Canopy CNC laser cut and CNC formed at the UK factory.
  • This product is only produced in the UK, using UK sourced steel to BS,EN and ISO standards.

Quality Materials & Workmanship

  • Engineered from design to assembly, we provide cost-effective solutions to your needs.
  • The range of welded fuel tanks are exceptionally strong and durable.
  • UK suppliers are subjected to extensive checks within our ISO 9001 framework
  • In house laser cutting and sheet metal facility allows production to high standards.

High Quality Power on Demand

  • Control panel has remote start / AMF as standard using UK made DSE7000 series control module.
  • Standard units offer not only excellent ratings aligned with key power nodes, but high overload capability and a wide range of options available on Stamford alternators

Safety, Security & Environment

  • Radiator fan and battery charging alternator fully guarded.
  • High quality roof mounted silencer for operator safety.
  • Alternator moving parts fully guarded.
  • Optionally, emission compliant models can be assembled to EU Stage IIIA

The Control Panel

The UK made Deep Sea 7000 series of controllers provides outstanding monitoring and features. The Deep Sea control modules have become a “must-have” feature for all segments of the generator market as in include a wide range of configurable options and extension modules to meet every requirement.

  • Low oil pressure shutdown.
  • High engine temperature shutdown.
  • High engine temperature shutdown.
  • Under Voltage warning/shutdown.
  • Over speed / over frequency.
  • Under speed / under frequency.
  • Over crank / fail to start alarm.
  • Over current alarm
DSE7310 MK2
  • Manual and automatic modes.
  • Three phase voltage monitoring.
  • Three phase current monitoring.
  • Frequency monitoring.
  • Start, crank, crank rest, warm up timers.
  • Return and cool down timers.
  • Battery under / over voltage alarms.
  • Exercise scheduler

kVA Power

Genset Model Prime Output Standby Output Perkins Engine Model Stamford Alternator Model
kVA kW kVA kW
SHP 720 746 596 820 656 4006-23TAG2A HCI 634G
SHP 800 801 640 860 688 4006-23TAG3A HCI 634G
SHP 910 911 728 1002 801 4008TAG1A HCI 634H
SHP 1000 1024 819 1110 888 4008TAG2A HCI 634J
SHP 1125 1110 888 1220 976 4008-30TAG3 HCI 634K
SHP 1250 1251 1000 1383 1106 4012-46TWG2A PI 734B
SHP1350 1363 1090 1498 1198 4012-46TWG3A PI 734B
SHP1500 1511 1208 1660 1328 4012-46TAG2A PI 734C
