SHP 600-S6 Acoustic Generator
Part No: SHP 600-S6

  • Perkins Powered
  • Stamford Alternator
  • DSE Controller
  • 772 kVA Standby @ 60 Hz
  • 703 kVA Prime @ 60 Hz

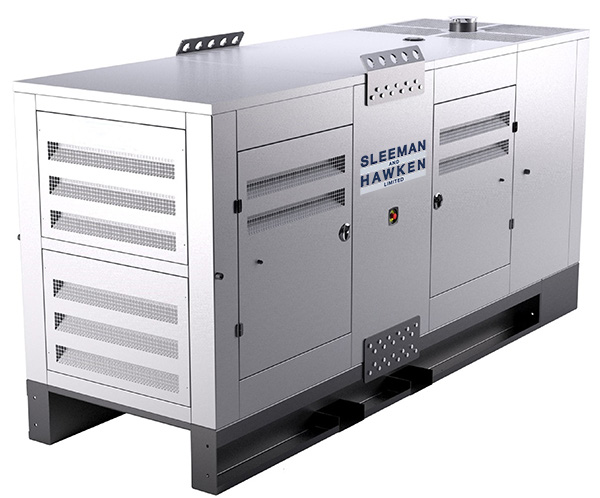

  • Canopy Optional

SKU: SHP 600-S6 Category:

Description

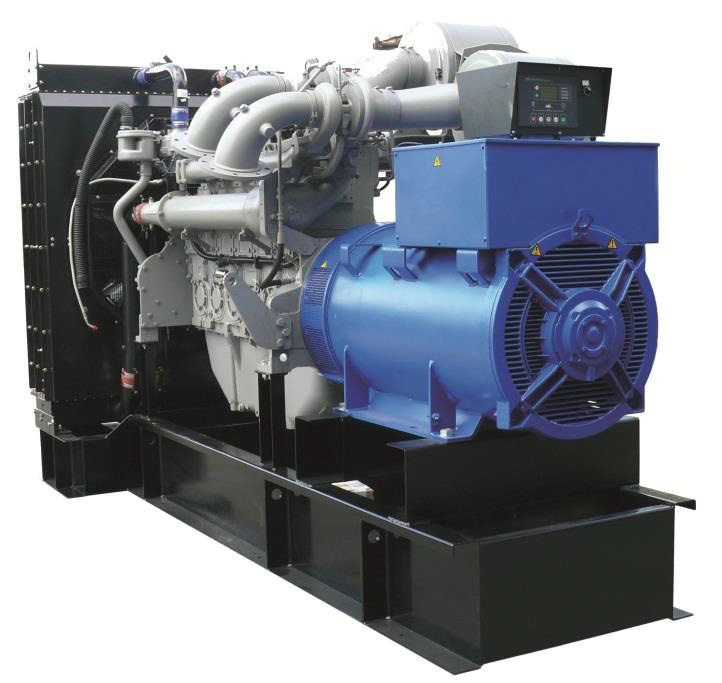

The SHP 600-S6 model diesel generator provides up to 703 kVA prime @ 60Hz. These generators are powered by the world-renowned Perkins 2806A-E18TAG3 model engines and coupled to a Stamford alternator to provide consistent power and reliability. All our generators are assembled in the UK. An optional canopy is available for any acoustic or security options needed.

Strong & Corrosion Resistant

  • Steel base frame, polyester powder coated at over 200 degrees C.
  • High quality, ISO R898 structural bolts, Zinc coated or excellent corrosion resistance.
  • S275 steel, laser cut and CNC formed.
  • This product is produced in the UK, using locally sourced steel to BS, EN and ISO standards.

Quality Materials & Workmanship

  • Engineered from design to assembly, we provide cost-effective solutions to your needs.
  • The range of welded fuel tanks is exceptionally strong and durable.
  • UK suppliers are subjected to extensive checks within our ISO 9001 framework
  • In-house laser cutting and sheet metal facility allows production to high standards.

Service and Support

  •  All required parts for proper maintenance and support are available with short lead times.
  • Technical assistance on request.
  • International Perkins / Stamford warranty.

Safety, Security & Environment

  • Radiator fan and battery charging alternator fully guarded.
  • High-quality roof-mounted silencer for operator safety.

The Control Panel

The UK made Deep Sea 7000 series of controllers provides outstanding monitoring and features. The Deep Sea control modules have become a “must-have” feature for all segments of the generator market as in include a wide range of configurable options and extension modules to meet every requirement.

  • Low oil pressure shutdown.
  • High engine temperature shutdown.
  • High engine temperature shutdown.
  • Under Voltage warning/shutdown.
  • Over speed / over frequency.
  • Under speed / under frequency.
  • Over crank / fail to start alarm.
  • Over current alarm
DSE7310 MK2
  • Manual and automatic modes.
  • Three phase voltage monitoring.
  • Three phase current monitoring.
  • Frequency monitoring.
  • Start, crank, crank rest, warm up timers.
  • Return and cool down timers.
  • Battery under / over voltage alarms.
  • Exercise scheduler

Engine Info

Engine Information
Engine Brand Perkins Displacement 18.1 Litres
Engine Model 2806A-E18TAG3 Cooling System Water Cooled
Engine Speed 1800 RPM Coolant Capacity  61 Litres
Cylinders 6 Lub Oil Capacity 62 Litres
Aspiration Turbo & air/air chrg cooled Governor Type Electronic
Combustion System Direct injection

Alternator Info

Alternator  Information
Alternator Brand Stamford No of Leads 12 Wires
Alternator Model HCI544F AVR Options AS440
Excitation Self Excited Voltage Regulation ± 1 (± 0.5 % with MX321)
Insulation Type Class H Wave Distortion < 5.0 % on load
Drip Proof Protection IP 23 Telephone Interference THF < 2 %
Winding Pitch Two Thirds Winding Number 311
