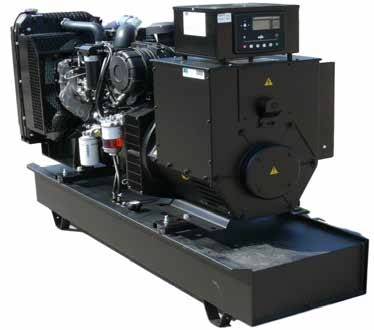

SHP 30-100 Generator
Part No: SHP 30-100
- Powered By Perkins Engines
- Stamford Alternator
- 30 kVA – 100 kVA Prime
- 5oHz 3 Phase Configuration

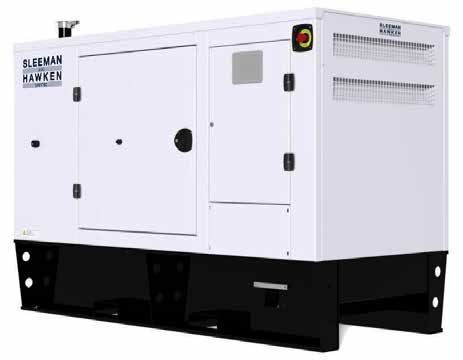

- Canopy Optional
Description
The SH 30-100 model diesel generator is preconfigured for a 3-phase 50Hz output. These generators are powered by the world-renowned Perkins engines and coupled to a Stamford alternator to provide consistent power and reliability. All our generators are assembled in the UK.
Strong & Corrosion Resistant
- British steel base frame, coated with polyester powder coat at over 200 degrees C.
- High quality, ISO R898 structural bolts, Zinc coated for excellent corrosion resistance.
- Canopy CNC laser cut and CNC formed at the UK factory.
- This product is only produced in the UK, using UK sourced steel to BS,EN and ISO standards.
Quality Materials & Workmanship
- Engineered from design to assembly, we provide cost-effective solutions to your needs.
- The range of welded fuel tanks are exceptionally strong and durable.
- UK suppliers are subjected to extensive checks within our ISO 9001 framework
- In house laser cutting and sheet metal facility allows production to high standards.
High Quality Power on Demand
- Control panel has remote start / AMF as standard using UK made DSE7000 series control module.
- Standard units offer not only excellent ratings aligned with key power nodes, but high overload capability and a wide range of options available on Stamford alternators
Safety, Security & Environment
- Radiator fan and battery charging alternator fully guarded.
- High quality roof mounted silencer for operator safety.
- Alternator moving parts fully guarded.
- Optionally, emission compliant models can be assembled to EU Stage IIIA
The Control Panel
The UK made Deep Sea 7000 series of controllers provides outstanding monitoring and features. The Deep Sea control modules have become a “must-have” feature for all segments of the generator market as in include a wide range of configurable options and extension modules to meet every requirement.
- Low oil pressure shutdown.
- High engine temperature shutdown.
- High engine temperature shutdown.
- Under Voltage warning/shutdown.
- Over speed / over frequency.
- Under speed / under frequency.
- Over crank / fail to start alarm.
- Over current alarm
- Manual and automatic modes.
- Three phase voltage monitoring.
- Three phase current monitoring.
- Frequency monitoring.
- Start, crank, crank rest, warm up timers.
- Return and cool down timers.
- Battery under / over voltage alarms.
- Exercise scheduler
kVA Power
| Genset Model | Prime Output | Standby Output | Perkins Engine Model | Stamford Alternator Model | ||
| kVA | kW | kVA | kW | |||
| SHP 30 | 30 | 24 | 33 | 26.4 | 1103A-33G | S0L1-P1 |
| SHP 40 | 40 | 32 | 44 | 35.2 | 1103A-33TG1 | |
| SHP 42.5 | 42.5 | 34 | 46.7 | 37.4 | 1103A-33TG1 | |
| SHP 45 | 45 | 36 | 49.5 | 39.6 | 1103A-33TG1 | S1L2-M1 |
| SHP 60 | 60 | 48 | 65.9 | 52.7 | 1103A-33TG2 | S1L2-Y1 |
| SHP 65 | 65 | 52 | 71.4 | 57.1 | 1104A-44TG1 | UCI 224F |
| SHP 80 | 80 | 64.8 | 89 | 71.2 | 1104A-44TG1 | UCI224G |
| SHP 100C | 100 | 80 | 109.9 | 87.9 | 1104C-44TG2 | UCI274C |
Weights & Dimensions
| Genset Model | Open Sets | Fuel Tank Capacity | Canopied Sets | Fuel Tank Capacity |
| L x W x H mm, Weight kg | L x W x H mm, Weight kg | |||
| SHP 30 | 1500 x 700 x 1410 mm, 622 kg | 75 L | 2298 x 1104 x 1600 mm, 914 kg | 260 L |
| SHP 40 | 1500 x 700 x 1410 mm, 650 kg | 75 L | 2298 x 1104 x 1600 mm, 1010 kg | 260 L |
| SHP 42.5 | 1500 x 700 x 1410 mm, 659 kg | 75 L | 2298 x 1104 x 1600 mm, 1019 kg | 260 L |
| SHP 45 | 1700 x 700 x 1410 mm, 751 kg | 75 L | 2298 x 1104 x 1600 mm, 1111 kg | 260 L |
| SHP 60 | 1700 x 700 x 1410 mm, 777 kg | 75 L | 2298 x 1104 x 1600 mm, 1137 kg | 260 L |
| SHP 65 | 2100 x 700 x 1410 mm, 869 kg | 75 L | 2298 x 1104 x 1600 mm, 1206 kg | 260 L |
| SHP 80 | 2100 x 700 x 1410 mm, 915 kg | 75 L | 2298 x 1104 x 1600 mm, 1252 kg | 260 L |
| SHP100C | 2100 x 740 x 1600 mm, 1039 kg | 75 L | 2298 x 1104 x 1600 mm, 1312 kg | 260 L |
