SHP 200-300 Generator
Part No: SHP 200-300

  • Powered By Perkins Engines
  • Stamford Alternator
  • 200 kVA – 300 kVA Prime
  • 5oHz 3 Phase Configuration
  • Canopy Optional

SKU: SHP 200-300 Category:

Description

The SHP 200-300 model diesel generator is a powerful option. These generators are powered by the world-renowned Perkins 1506A model engines and coupled to a Stamford alternator to provide consistent power and reliability. All our generators are assembled in the UK.

Strong & Corrosion Resistant

  • British steel base frame, coated with polyester powder coat at over 200 degrees C.
  • High quality, ISO R898 structural bolts, Zinc coated for excellent corrosion resistance.
  • Canopy CNC laser cut and CNC formed at the UK factory.
  • This product is only produced in the UK, using UK sourced steel to BS,EN and ISO standards.

Quality Materials & Workmanship

  • Engineered from design to assembly, we provide cost-effective solutions to your needs.
  • The range of welded fuel tanks are exceptionally strong and durable.
  • UK suppliers are subjected to extensive checks within our ISO 9001 framework
  • In house laser cutting and sheet metal facility allows production to high standards.

High Quality Power on Demand

  • Control panel has remote start / AMF as standard using UK made DSE7000 series control module.
  • Standard units offer not only excellent ratings aligned with key power nodes, but high overload capability and a wide range of options available on Stamford alternators

Safety, Security & Environment

  • Radiator fan and battery charging alternator fully guarded.
  • High quality roof mounted silencer for operator safety.
  • Alternator moving parts fully guarded.
  • Optionally, emission compliant models can be assembled to EU Stage IIIA

The Control Panel

The UK made Deep Sea 7000 series of controllers provides outstanding monitoring and features. The Deep Sea control modules have become a “must-have” feature for all segments of the generator market as in include a wide range of configurable options and extension modules to meet every requirement.

  • Low oil pressure shutdown.
  • High engine temperature shutdown.
  • High engine temperature shutdown.
  • Under Voltage warning/shutdown.
  • Over speed / over frequency.
  • Under speed / under frequency.
  • Over crank / fail to start alarm.
  • Over current alarm
DSE7310 MK2
  • Manual and automatic modes.
  • Three phase voltage monitoring.
  • Three phase current monitoring.
  • Frequency monitoring.
  • Start, crank, crank rest, warm up timers.
  • Return and cool down timers.
  • Battery under / over voltage alarms.
  • Exercise scheduler

kVA Power

Genset Model

Prime Output

Standby Output Perkins Engine Model

Stamford Alternator Model

kVA

kW kVA

kW

SHP200

200 166 220 183 1506A-E88TAG1 UCI274H

SHP225

225 188 250 205 1506A-E88TAG2 UCDI274J

SHP250

250 205 275 239 1506A-E88TAG3 UCDI274K

SHP275

275 226 300 248 1506A-E88TAG4 S4L1D-D41

SHP300

300 248 330 285 1506A-E88TAG5 S4L1D-D41

The above figures are for a 50Hz, 3 Phase generator

Weights & Dimensions

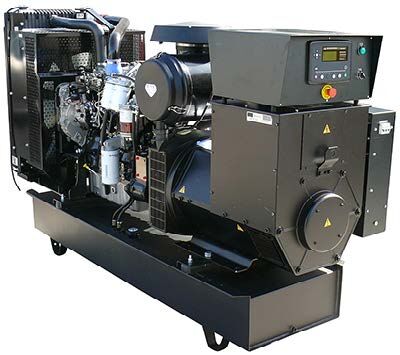

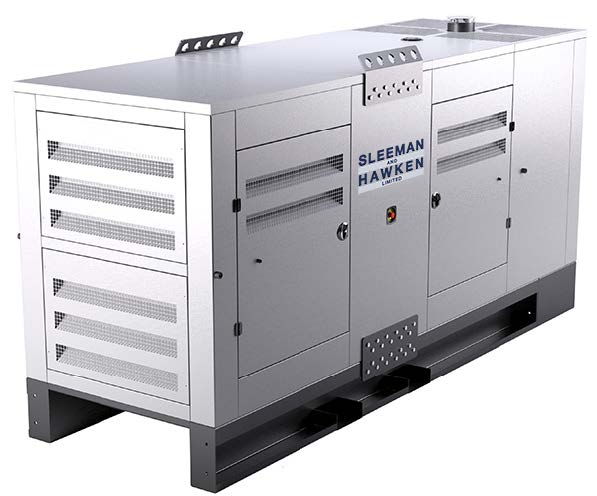

Genset Model Open Sets Fuel Tank Capacity Canopied Sets Fuel Tank Capacity
L x W x H mm, Weight kg L x W x H mm, Weight kg
SHP200 3000 x 1000 x 1720 mm, 2775 kg 650 L 4900 x 1820 x 2463 mm, 4307 kg 800 L
SHP225 3000 x 1000 x 1720 mm, 2876 kg 650 L 4900 x 1820 x 2463 mm, 4408 kg 800 L
SHP250 3000 x 1000 x 1720 mm, 2876 kg 650 L 4900 x 1820 x 2463 mm, 4408 kg 800 L
SHP275 3000 x 1000 x 1720 mm, 3116 kg 650 L 4900 x 1820 x 2463 mm, 4648 kg 800 L
SHP300 3000 x 1000 x 1720 mm, 3116 kg 650 L 4900 x 1820 x 2463 mm, 4648 kg 800 L
