SHP 1110-S6 Generator
Part No: SHP 1110-S6

  • Perkins Powered
  • Stamford Alternator
  • DSE Controller
  • 1391 kVA Standby @ 60 Hz
  • 1259 kVA Prime @ 60 Hz
  • Canopy Optional

SKU: SHP 1110-S6 Category:

Description

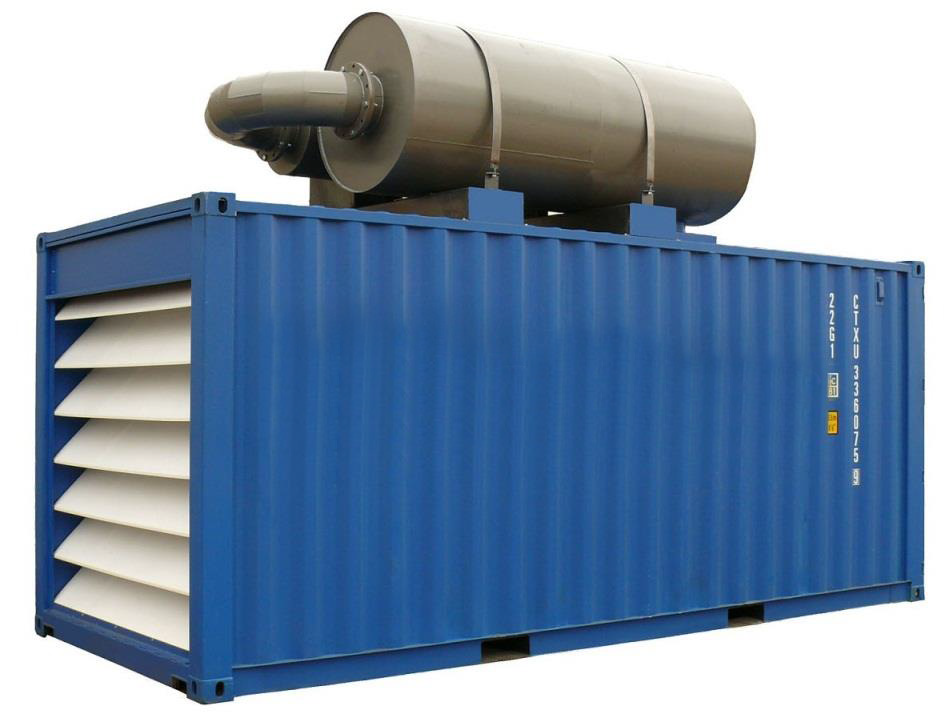

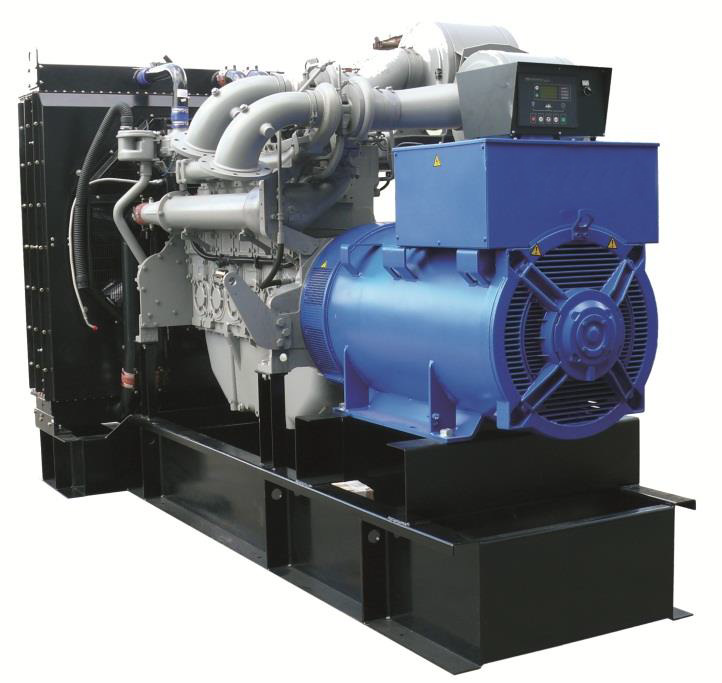

The SHP 1110-S6A model diesel generator provides up to 1259 kVA prime @ 60Hz. These generators are powered by the world-renowned Perkins 4012-46TWG2A model engines and coupled to a Stamford alternator to provide consistent power and reliability. All our generators are assembled in the UK. These large generators are fully housed in custom-adapted shipping container enclosures to ensure security, safety and ease of use.

Strong & Corrosion Resistant

  • Steel base frame, polyester powder coated at over 200 degrees C.
  • High quality, ISO R898 structural bolts, Zinc coated or excellent corrosion resistance.
  • S275 steel, laser cut and CNC formed.
  • This product is produced in the UK, using locally sourced steel to BS, EN and ISO standards.

Quality Materials & Workmanship

  • Engineered from design to assembly, we provide cost-effective solutions to your needs.
  • The range of welded fuel tanks is exceptionally strong and durable.
  • UK suppliers are subjected to extensive checks within our ISO 9001 framework
  • In-house laser cutting and sheet metal facility allows production to high standards.

Service and Support

  •  All required parts for proper maintenance and support are available with short lead times.
  • Technical assistance on request.
  • International Perkins / Stamford warranty.

Safety, Security & Environment

  • Radiator fan and battery charging alternator fully guarded.
  • High-quality roof-mounted silencer for operator safety.

The Control Panel

The UK made Deep Sea 7000 series of controllers provides outstanding monitoring and features. The Deep Sea control modules have become a “must-have” feature for all segments of the generator market as in include a wide range of configurable options and extension modules to meet every requirement.

  • Low oil pressure shutdown.
  • High engine temperature shutdown.
  • High engine temperature shutdown.
  • Under Voltage warning/shutdown.
  • Over speed / over frequency.
  • Under speed / under frequency.
  • Over crank / fail to start alarm.
  • Over current alarm
DSE7310 MK2
  • Manual and automatic modes.
  • Three phase voltage monitoring.
  • Three phase current monitoring.
  • Frequency monitoring.
  • Start, crank, crank rest, warm up timers.
  • Return and cool down timers.
  • Battery under / over voltage alarms.
  • Exercise scheduler

Engine Info

Engine Information
Engine Brand Perkins Displacement 18.1 Litres
Engine Model 4012-46TWG2A Cooling System Water Cooled
Engine Speed 1800 RPM Coolant Capacity 201 Litres
Cylinders 12 Lub Oil Capacity 177 Litres
Aspiration Turbo & air/water chrg cooled Governor Type Electronic
Combustion System Direct injection

Alternator Info

Alternator  Information
Alternator Brand Stamford No of Leads 6 Wires
Alternator Model P1734B1 AVR Options MX341, MX321
Excitation Self Excited Voltage Regulation ± 1 (± 0.5 % with MX321)
Insulation Type Class H Wave Distortion < 5.0 % on load
Drip Proof Protection IP 23 Telephone Interference THF < 2 %
Winding Pitch Two Thirds Winding Number 312
