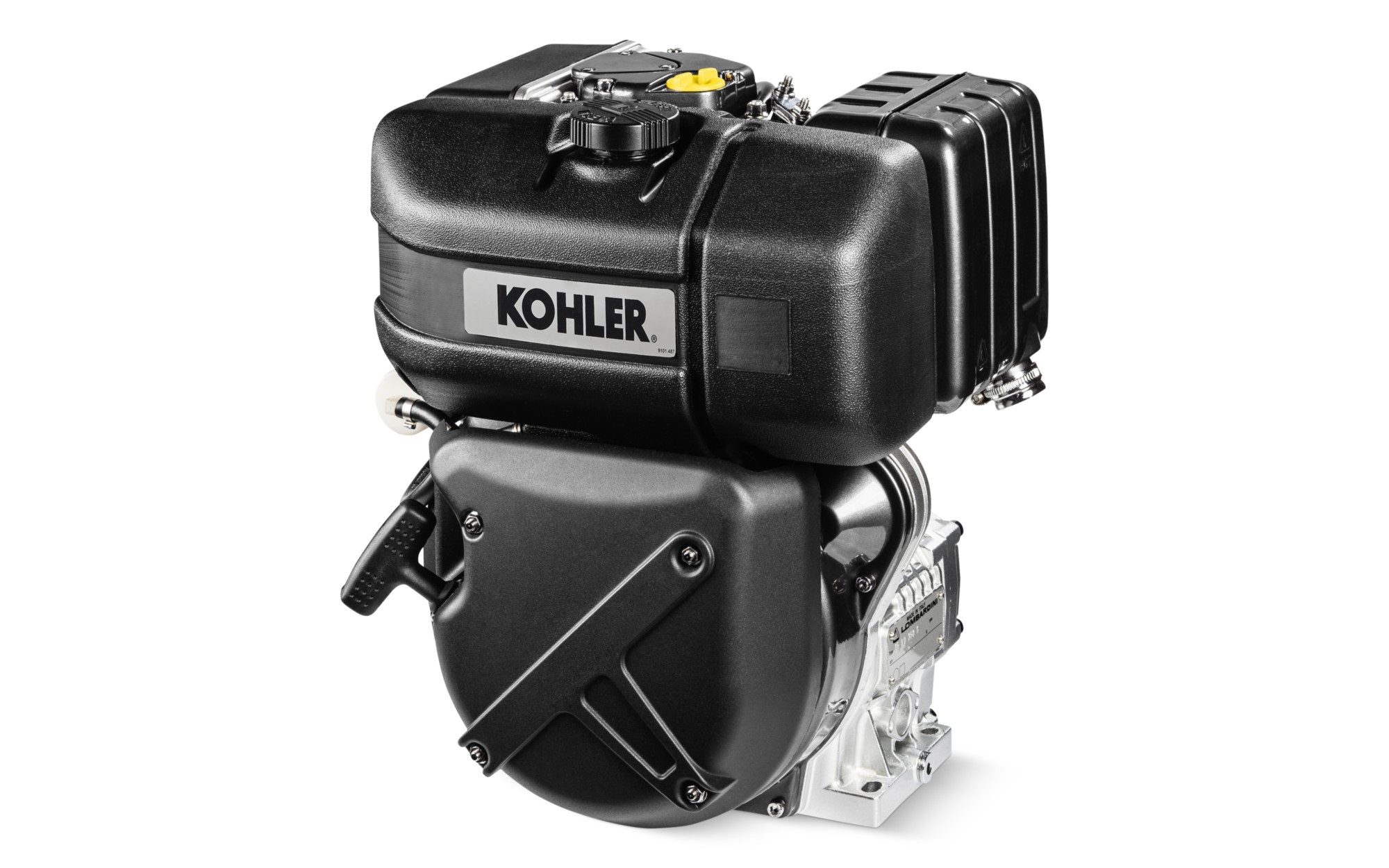

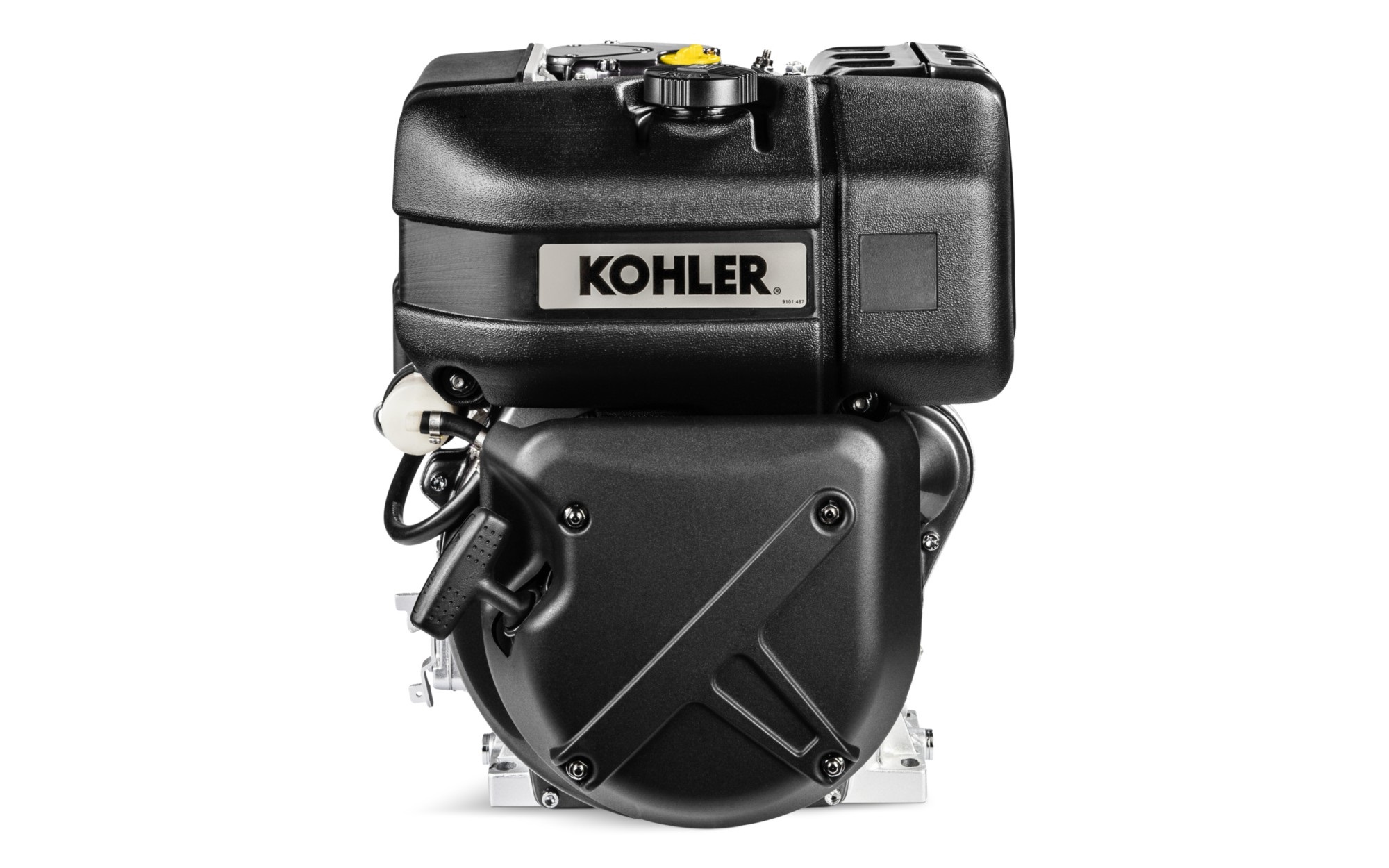

Kohler KD15-350S
Part No: KD15-350S
Kohler
Fuel Type: Diesel
HP: 6.7
Shaft: Horizontal
Cylinders: 1
Cooling: Air
Emissions: China Phase II
Description
Four-stroke, aluminium cylinder head, the automatic extra fuel starting system
Model: KD15-350S
Power: 5.0(6.7) kw (hp)
Displacement: 349 (21.3) cm3 (in3)
Bore: 82 (3.2) mm (in)
Stroke: 66 (2.6) mm (in)
Gross Torque: 14.7 (10.8) Nm (lb-ft)
Compression Ratio: 20.3:1
Dry Weight: 33 (72.8) kg (lbs)
Oil Capacity: 1.2 (1.3) L (US qt)
Lubrication: Full pressure w/full-flow filter
Dimensions: 368 x 310 x 445 (15.2 x 12.2 x 17.5) L x W x H mm (in)
Emissions Compliance: China Phase II
Standard Equipment
- Recoil starting with automatic compression release
- Fuel tank
- Fuel filter
- Dry air cleaner
- Muffler with guard
- Accelerator and stop manual control
- Automatic deaeration on injection pump
- Wire mesh oil filter
- Conical power take-off
- External safety fuel filter
- Automatic fuel control during start
- User maintenance and spare parts booklet
Additional information
| Brand | Kohler |
|---|---|
| Cooling | Air Cooled |
| Cylinders | 1 |
| Emissions | Non Compliant |
| Max Power kW | 5 kW – 10 kW |
Accessories
ACCESSORIES ON DEMAND
- Power take-off flywheel side (engines with electrical starting)
- Power take-offs with flanging and special shaft
- Lateral power take-off
- Internal dynamic balancer
- Electric start 12V / 24 V
- Key switch panel
- Fuel lift pump
- Emergency stop through electrovalve
- Accelerator and stop remote control
- Oil pressure switch
- Oil temperature switch
- Oil bath air cleaner
- Cylinder head temperature switch
- Glow plug on intake manifold
- Stop with solenoid valve
- Recoil with denoising cover
- Grass protection for engine cooling
- Alternator with voltage regulator 12 V or 24 V
- Oil level sensor switch
- High capacity oil sump (KD15-350 and KD15-440)
- High capacity oil and fuel filters for remote assembly*
- Single lever control
- Control lever guard
