Hatz 4H50TICD
Part No: 4H50TICD

Hatz

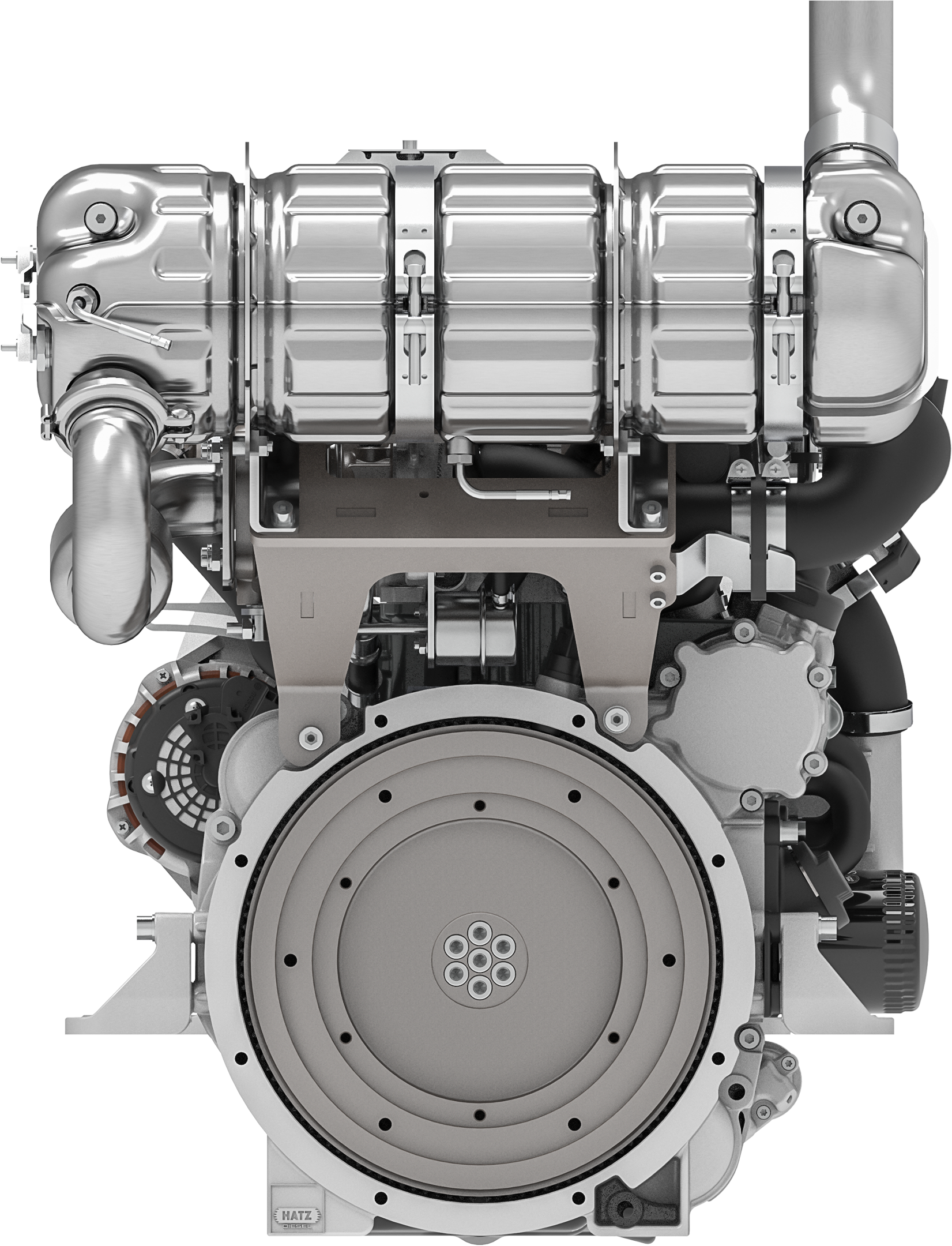

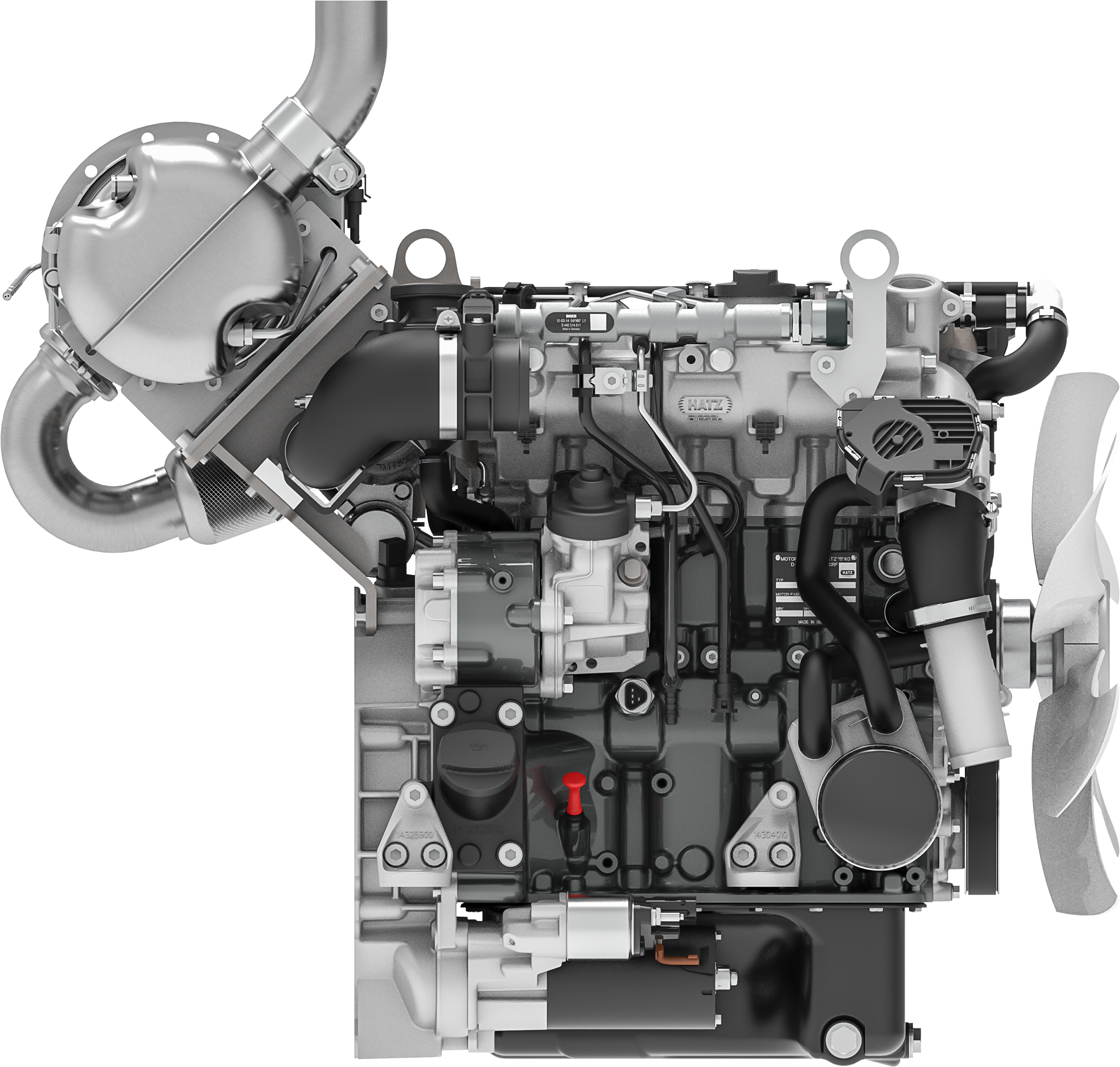

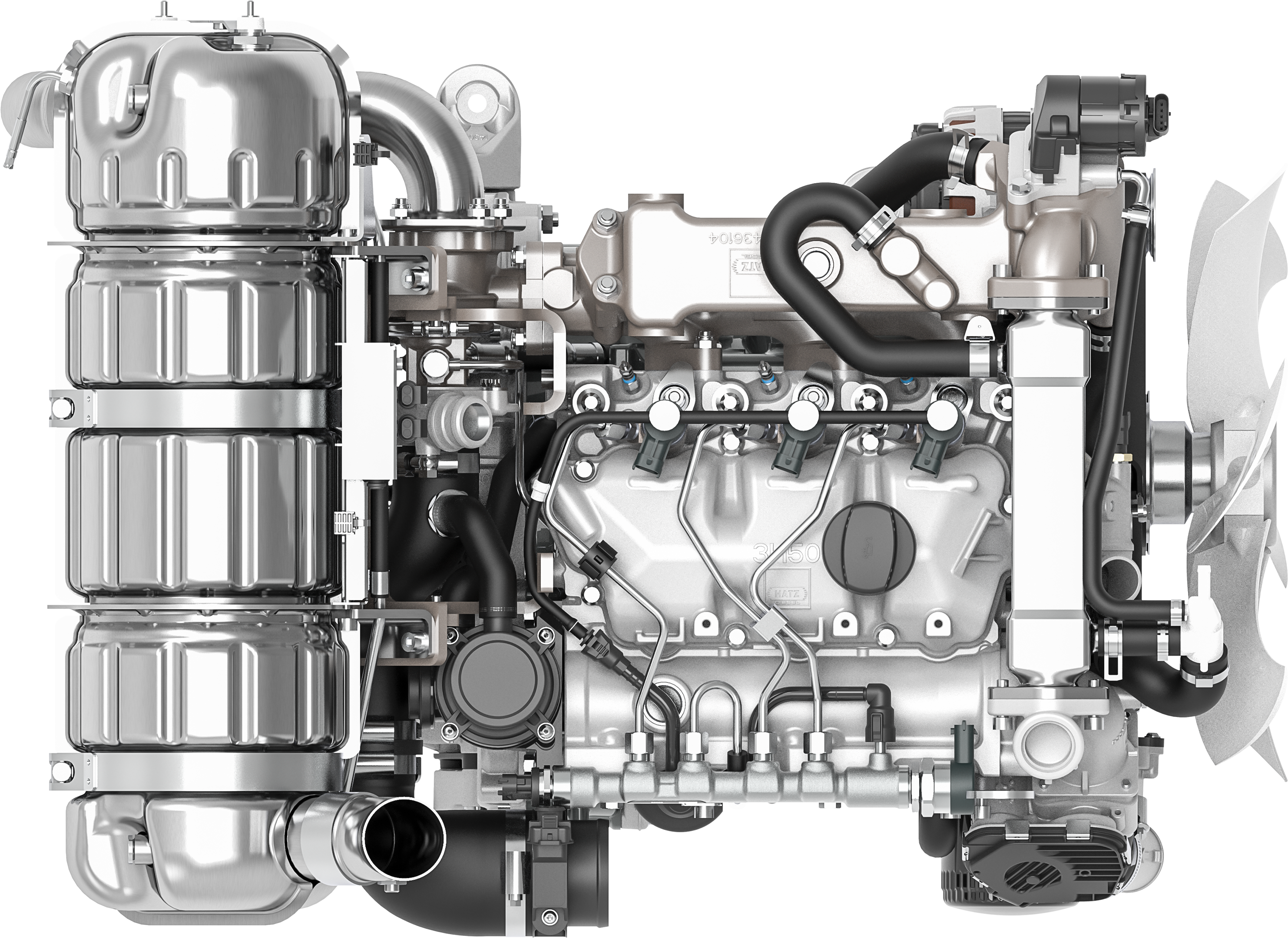

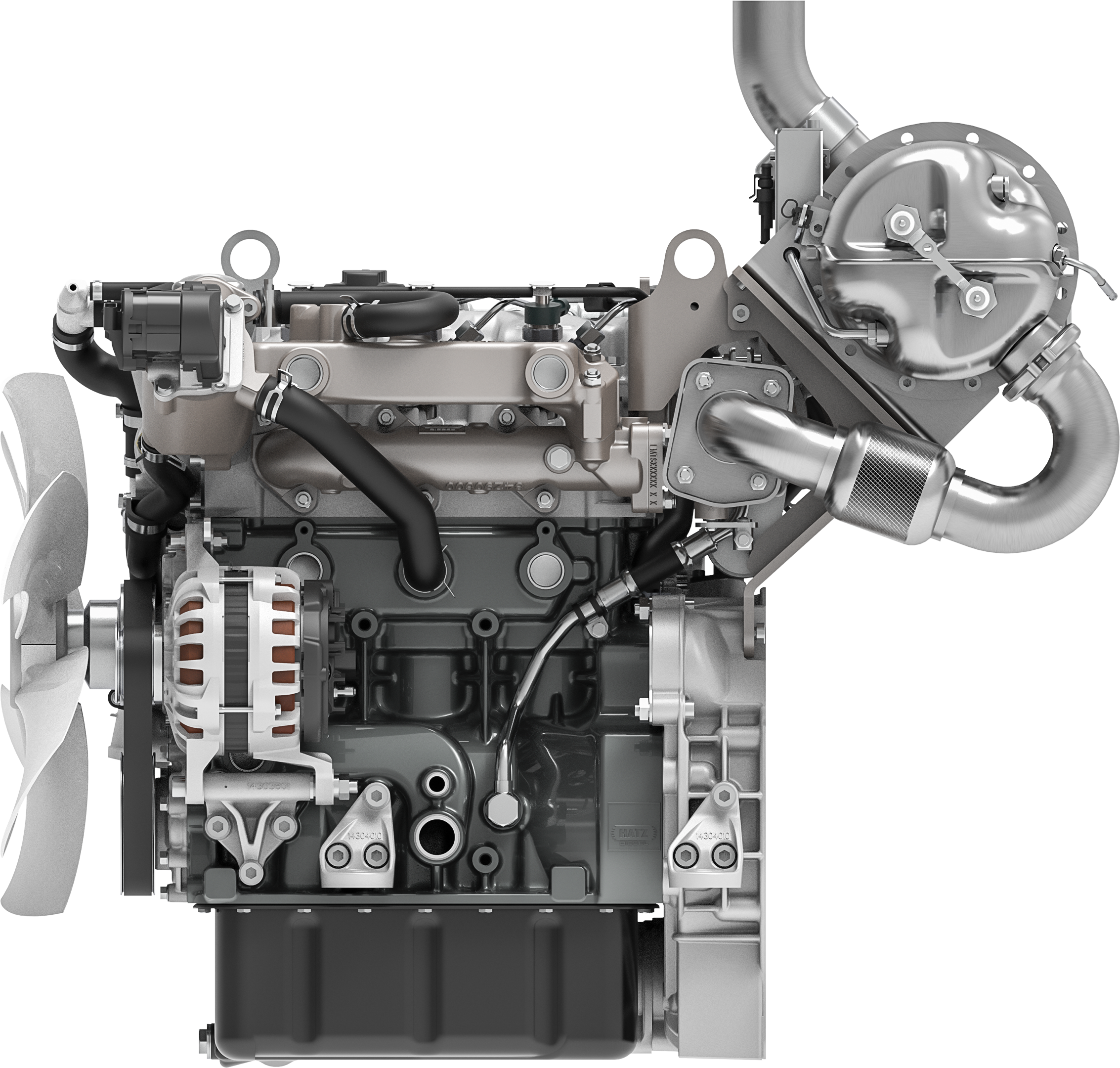

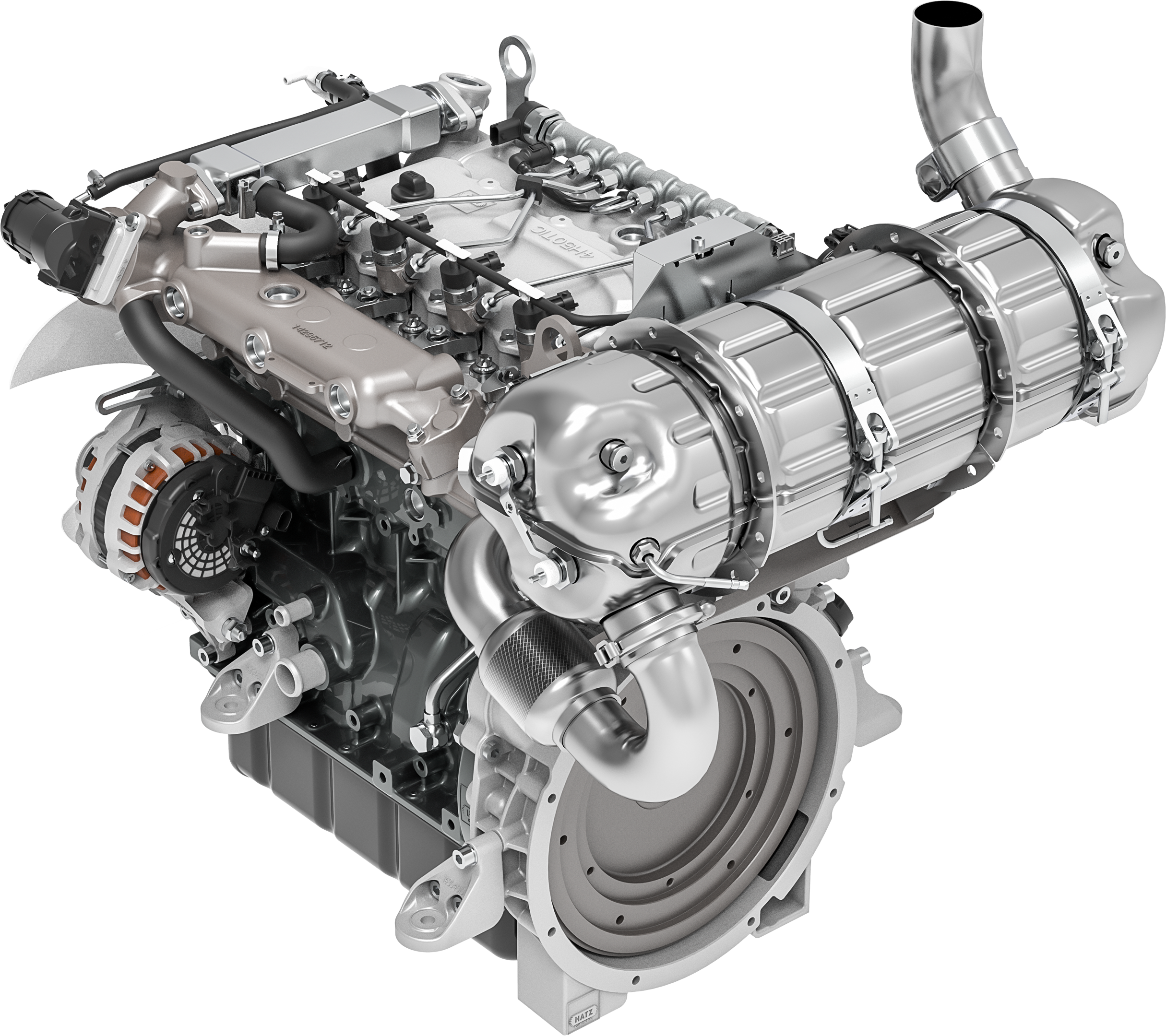

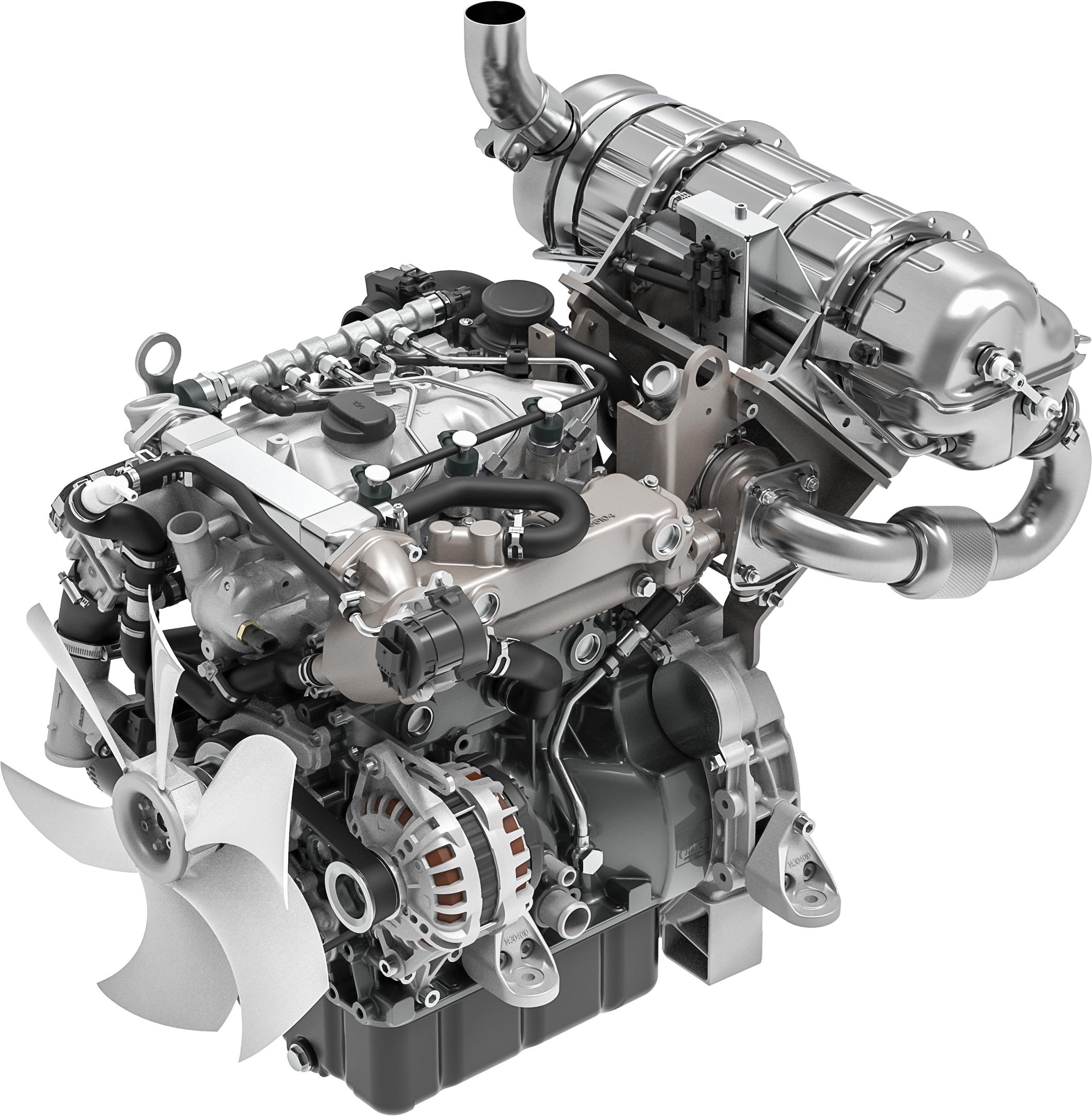

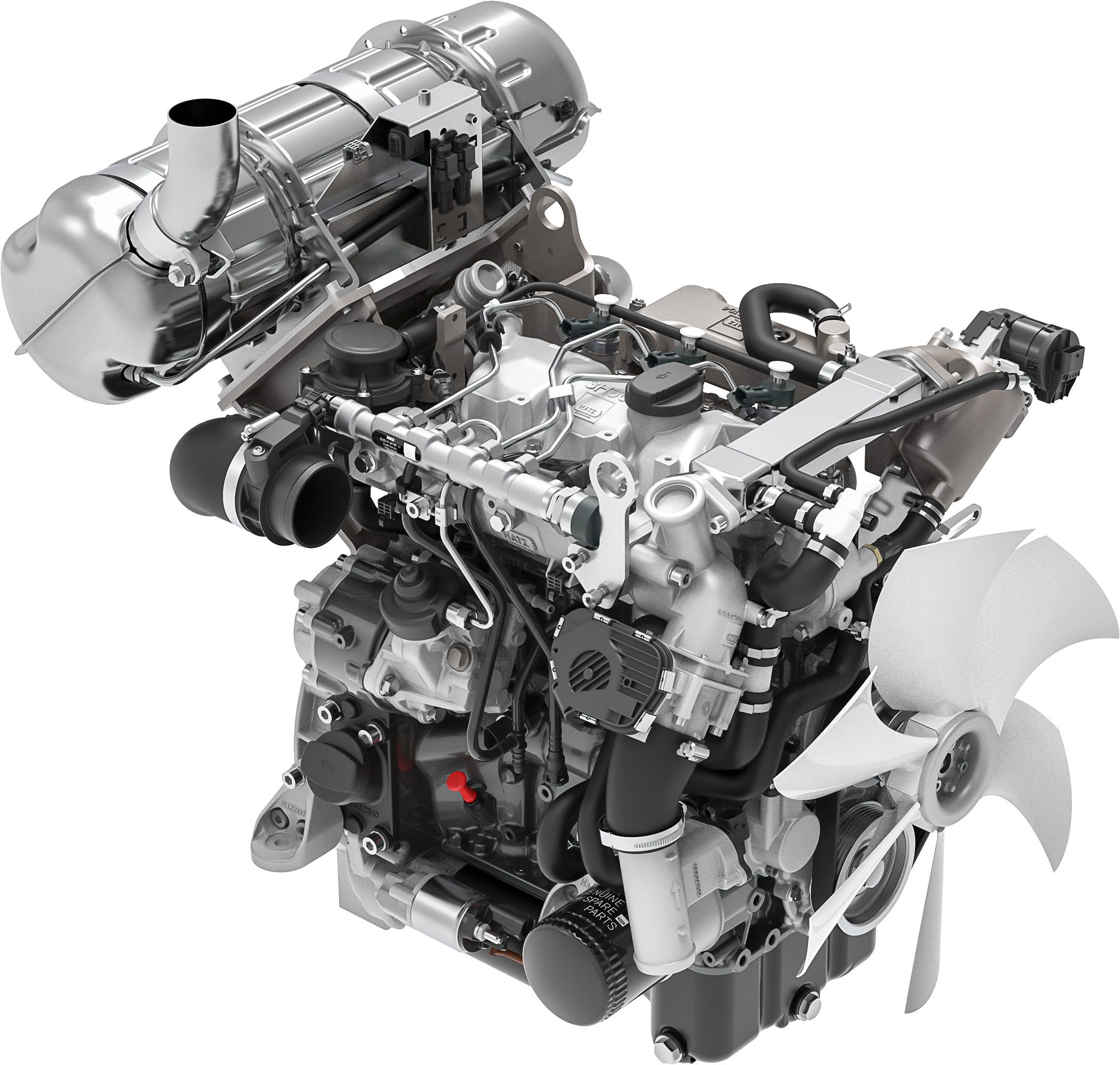

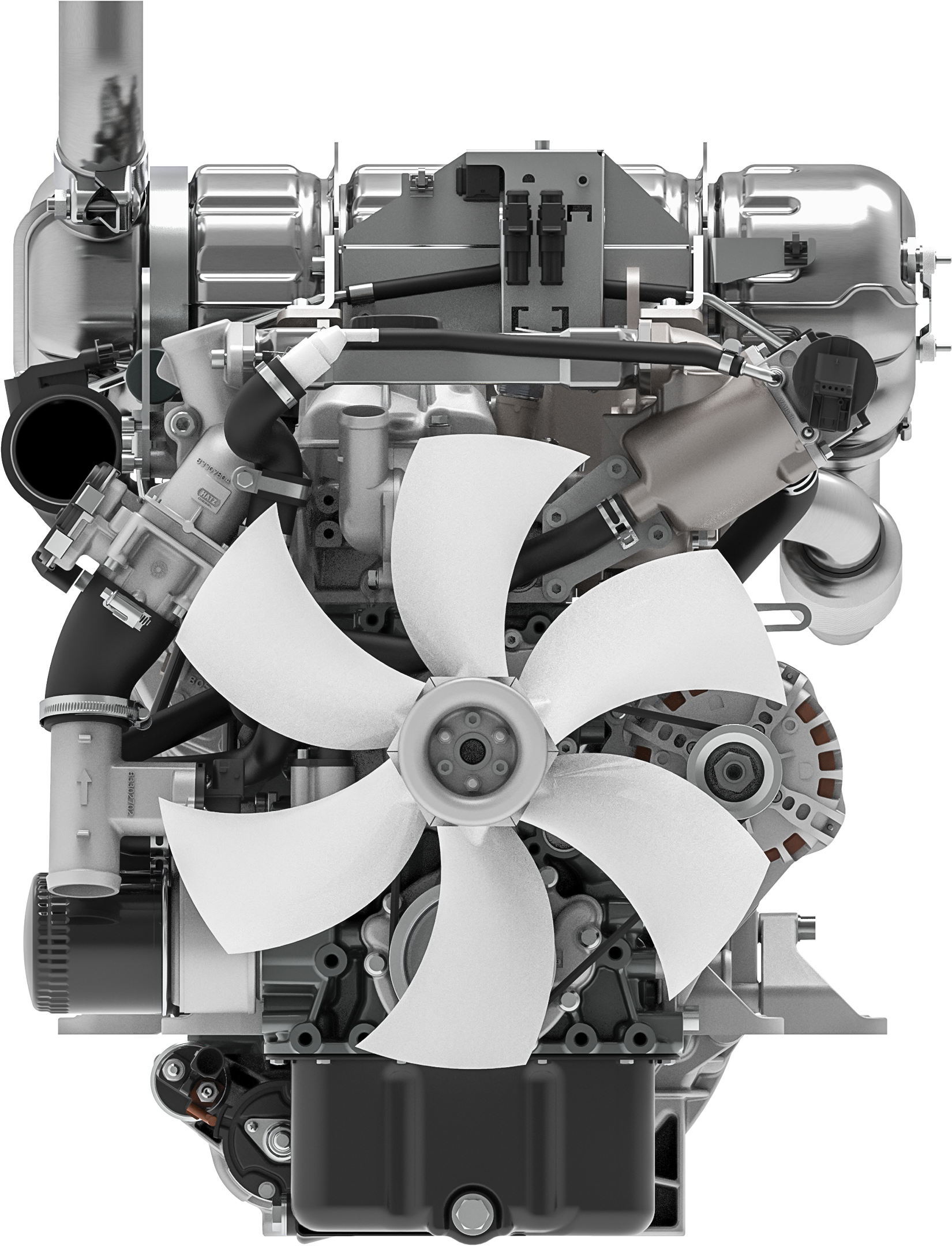

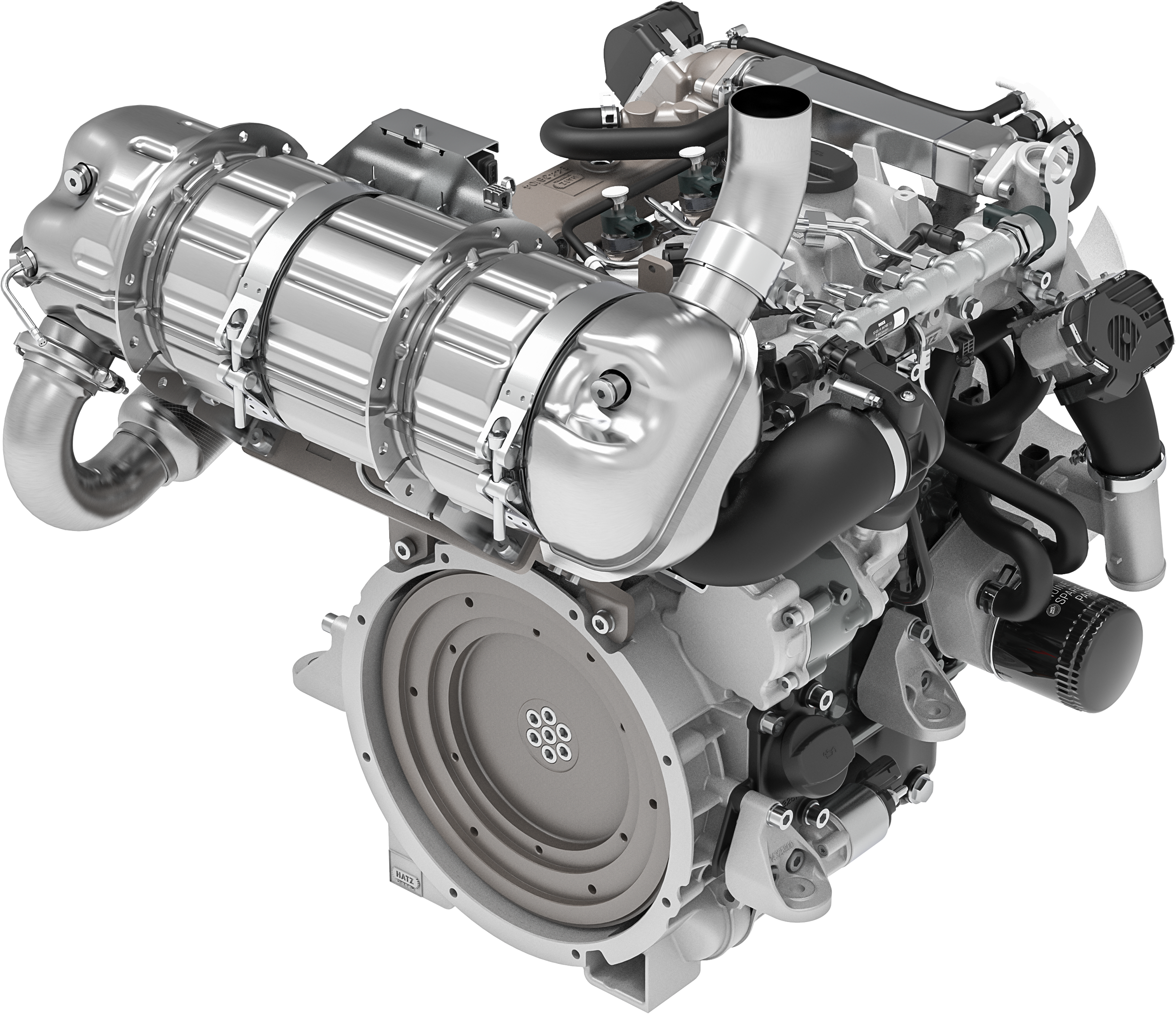

The Hatz 4H50TICDengine is a modern 4-cylinder diesel engine.

  • Power from 31.0 to 55.4 kW
  • Max. torque 244 Nm
  • Bosch OHW common rail system with 1800 bar
  • exhaust-gas turbocharger with intercooler
  • Diesel particulate filter (DPF)
  • EU Stage V and EPA Tier 4 final certified

SKU: 4H50TICD Categories: ,

Description

The Hatz 4H50TICDengine is a modern 4-cylinder diesel engine.

  • Power from 31.0 to 55.4 kW
  • Max. torque 244 Nm
  • Bosch OHW common rail system with 1800 bar
  • exhaust-gas turbocharger with intercooler
  • Diesel particulate filter (DPF)
  • EU Stage V and EPA Tier 4 final certified

Construction

  • water cooled 4-cylinder Diesel engine
  • Upright cylinders arranged in series
  • Crankcase made of grey cast iron
  • Cylinder head with integrated intake manifold
  • direct injection with Bosch common rail-system
  • Pressurized lubrication with easy-change filter
  • Valve timing via rocker arm, hydraulic push rods and camshaft in block
  • maintenance free 2-valve technology
  • integrated engine protection
  • Available as Open Power Unit including radiator, intercooler, pipes and harness

Characteristics

  • ready to install and use
  • usable in a broad variety of applications like mobile, stationary and work machinery
  • robust and durable design
  • easy to service with 500 hours standard interval
  • low fuel consumption
  • highest torque in its class
  • lowest power to weight ratio in its class

Additional information

Brand

Hatz

Cooling

Water Cooled

Cylinders

4

Emissions

EU Stage IV / Tier 4, EU Stage V

Max Power kW

50 kW – 60 kW
