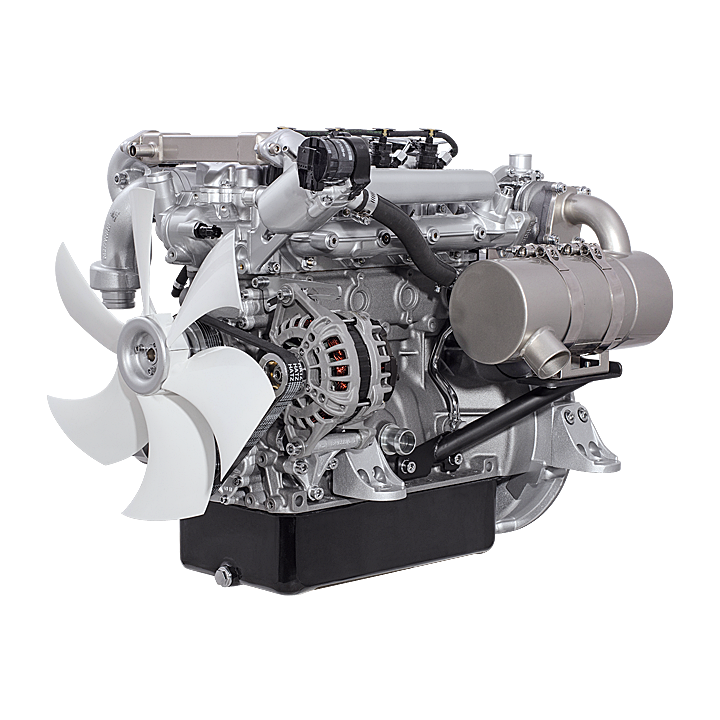

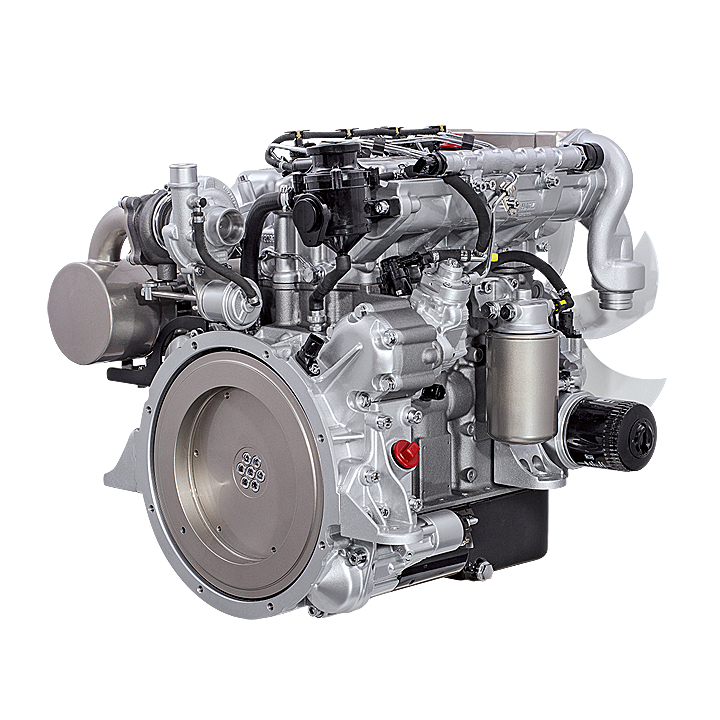

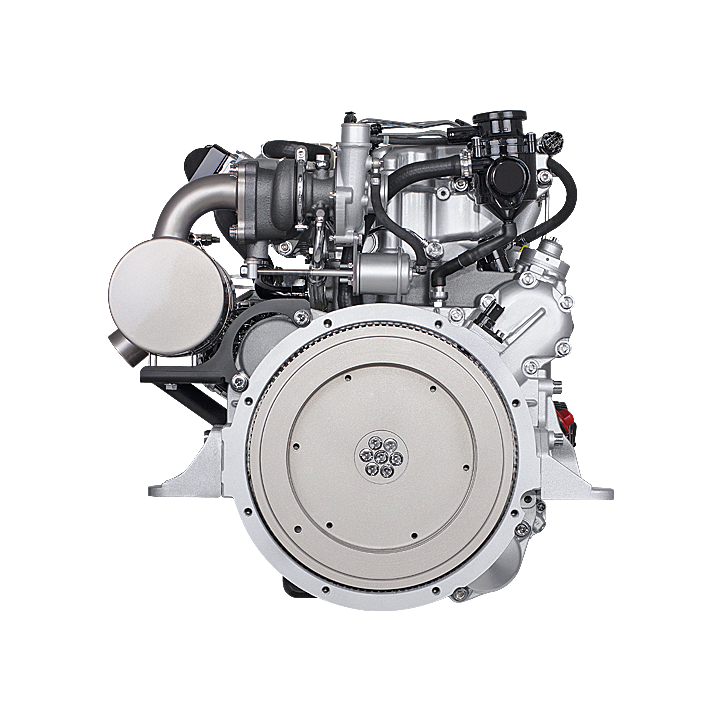

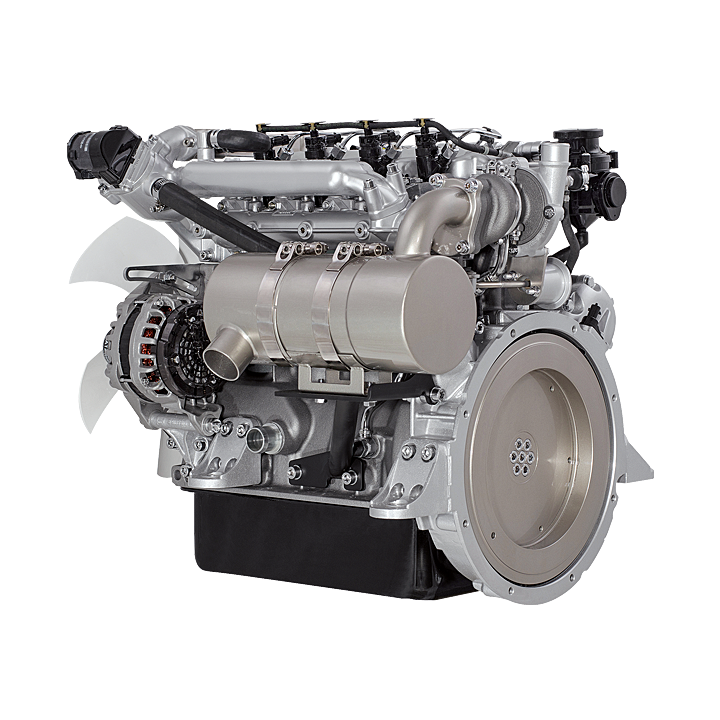

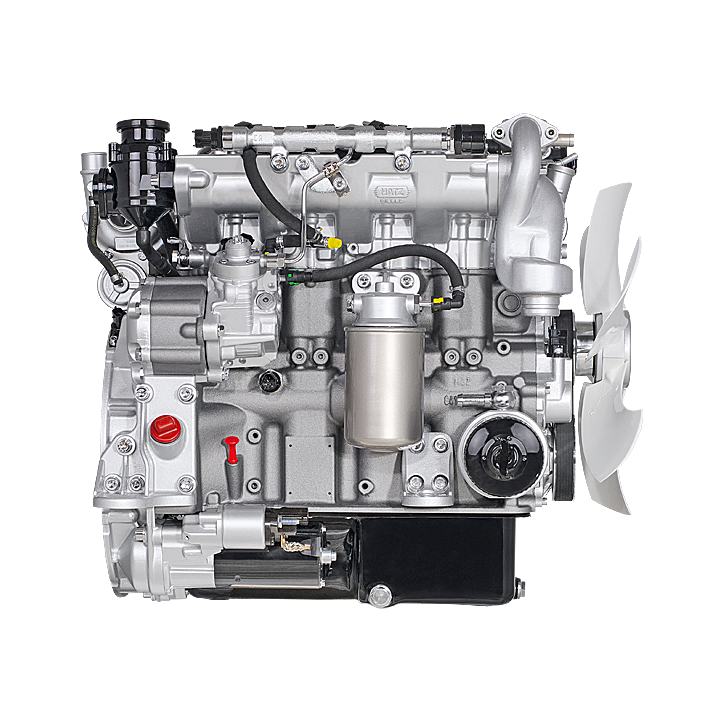

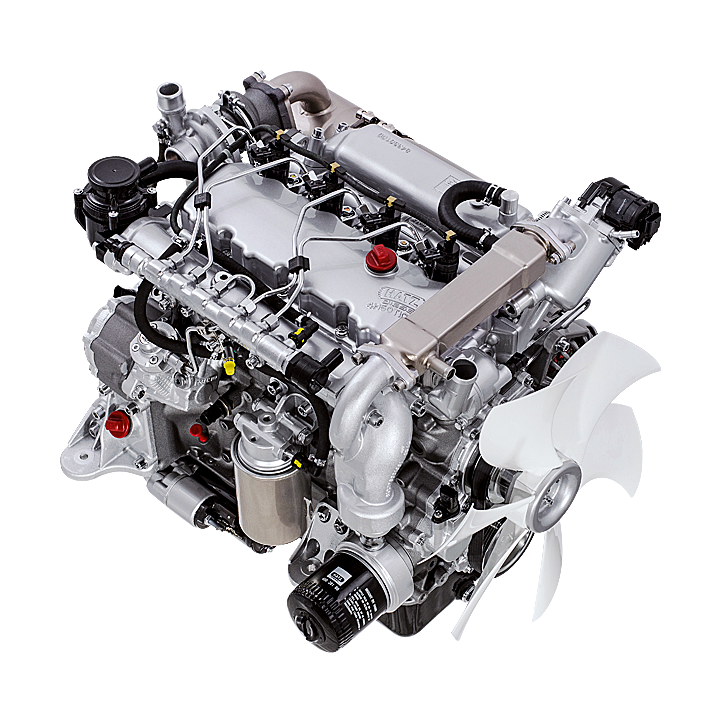

Hatz 4H50TIC
Part No: 4H50TIC

Description

The Hatz 4H50TIC engine is a modern 4-cylinder diesel engine.

• Power from 28.7 to 55 kW
• Max. torque 240 Nm
• Bosch OHW common rail system with 1800 bar
• exhaust-gas turbocharger with intercooler
• EPA Tier 4 final certified

Construction

• water cooled 4-cylinder Diesel engine
• Upright cylinders arranged in series
• Crankcase made of grey cast iron
• Cylinder head with integrated intake manifold
• direct injection with Bosch common rail-system
• Pressurized lubrication with easy-change filter
• Valve timing via rocker arm, hydraulic push rods and camshaft in block
• maintenance free 2-valve technology
• integrated engine protection

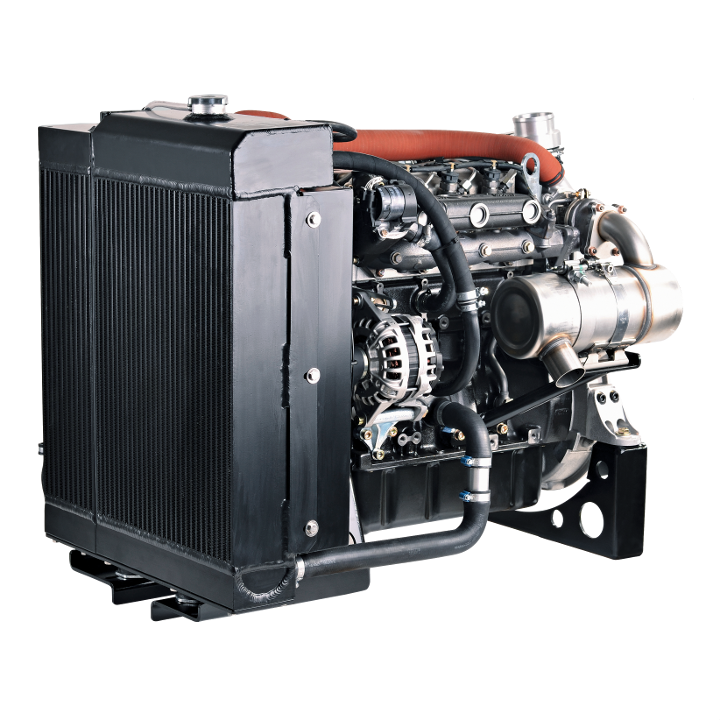

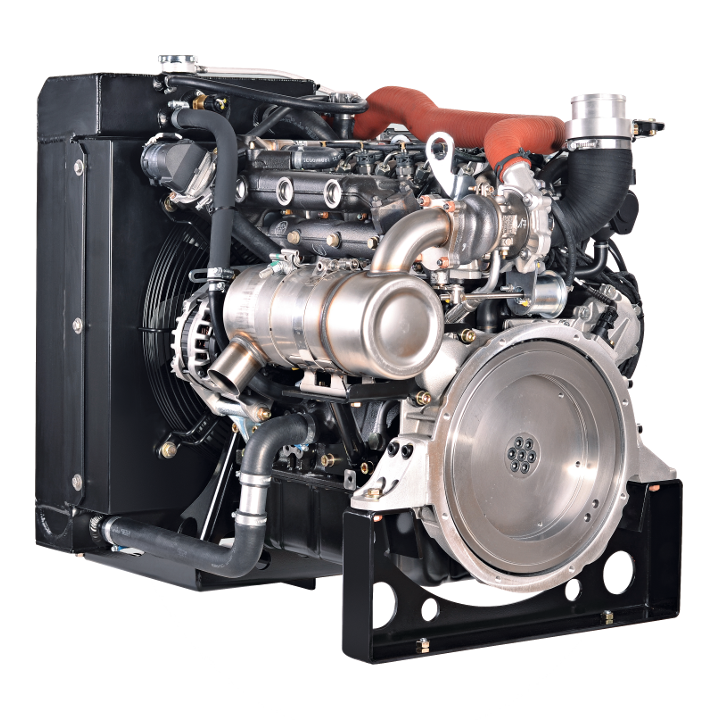

• Available as Open Power Unit including radiator, intercooler, pipes and harness

Characteristics

• ready to install and use
• usable in a broad variety of applications like mobile, stationary and work machinery
• robust and durable design
• easy to service with 500 hours standard interval
• low fuel consumption
• lowest power to weight ratio in its class
• the technical development of the 4H50TIC is supported by the Federal Ministry of Economics and Technology based on a decision of the German Bundestag
