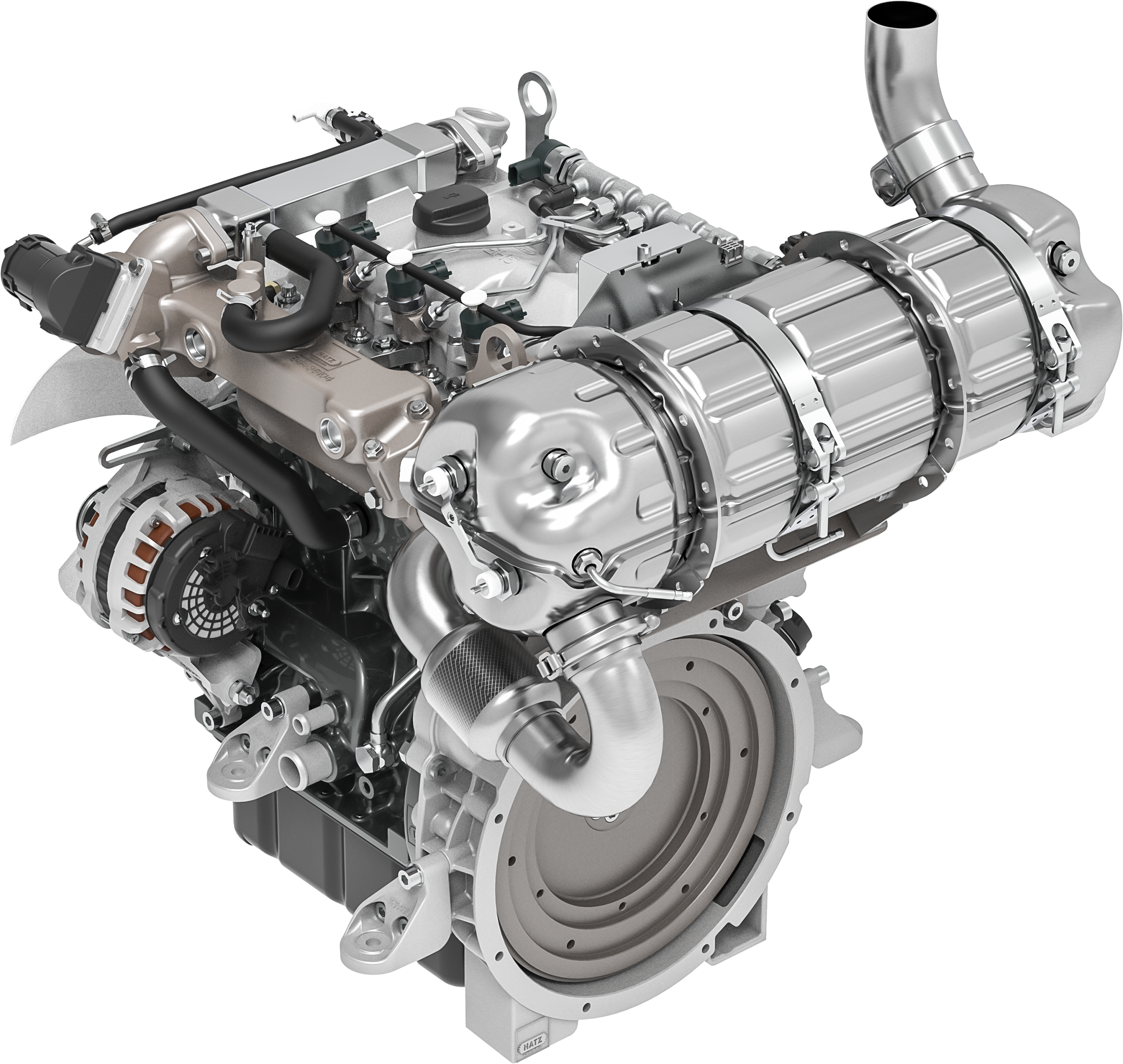

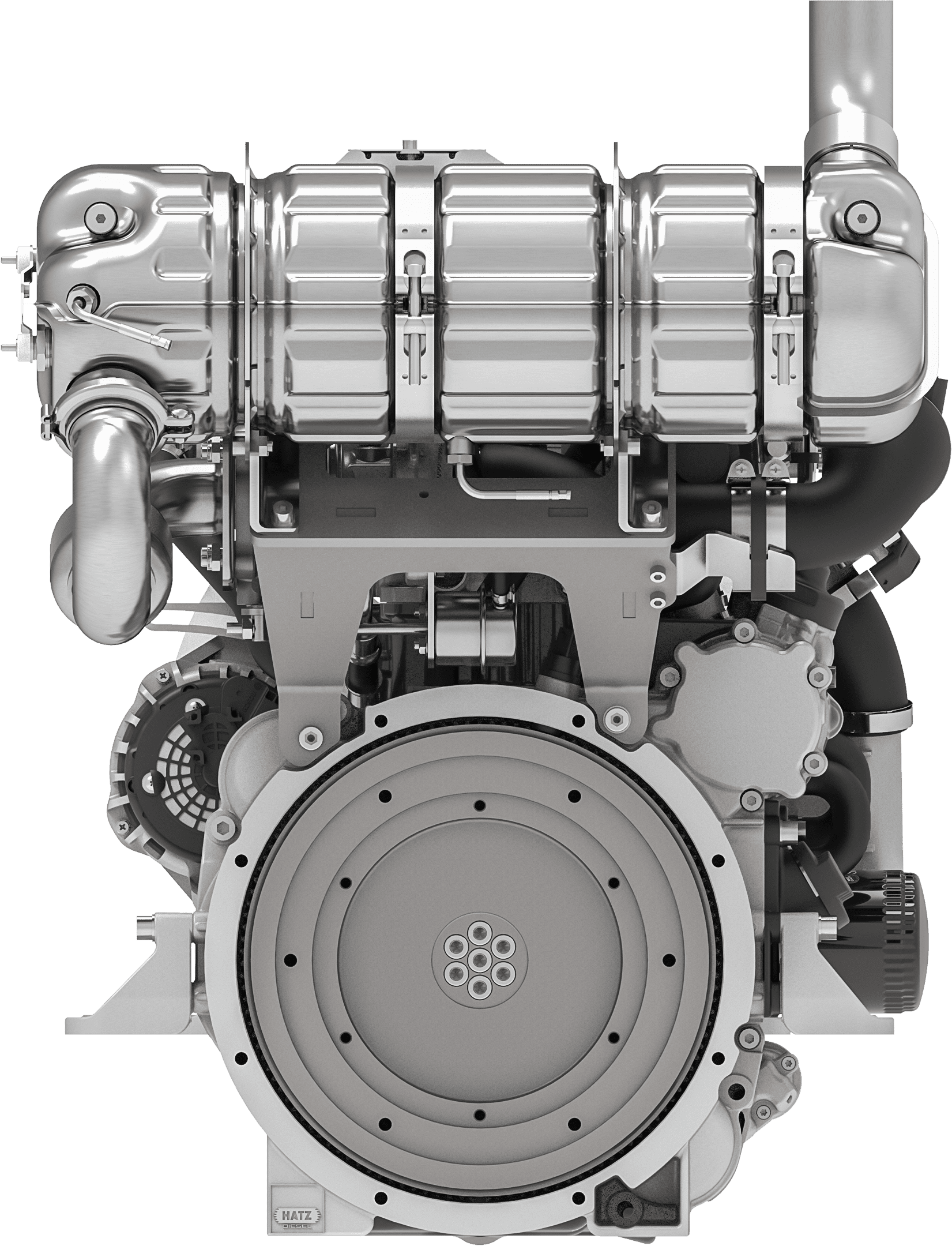

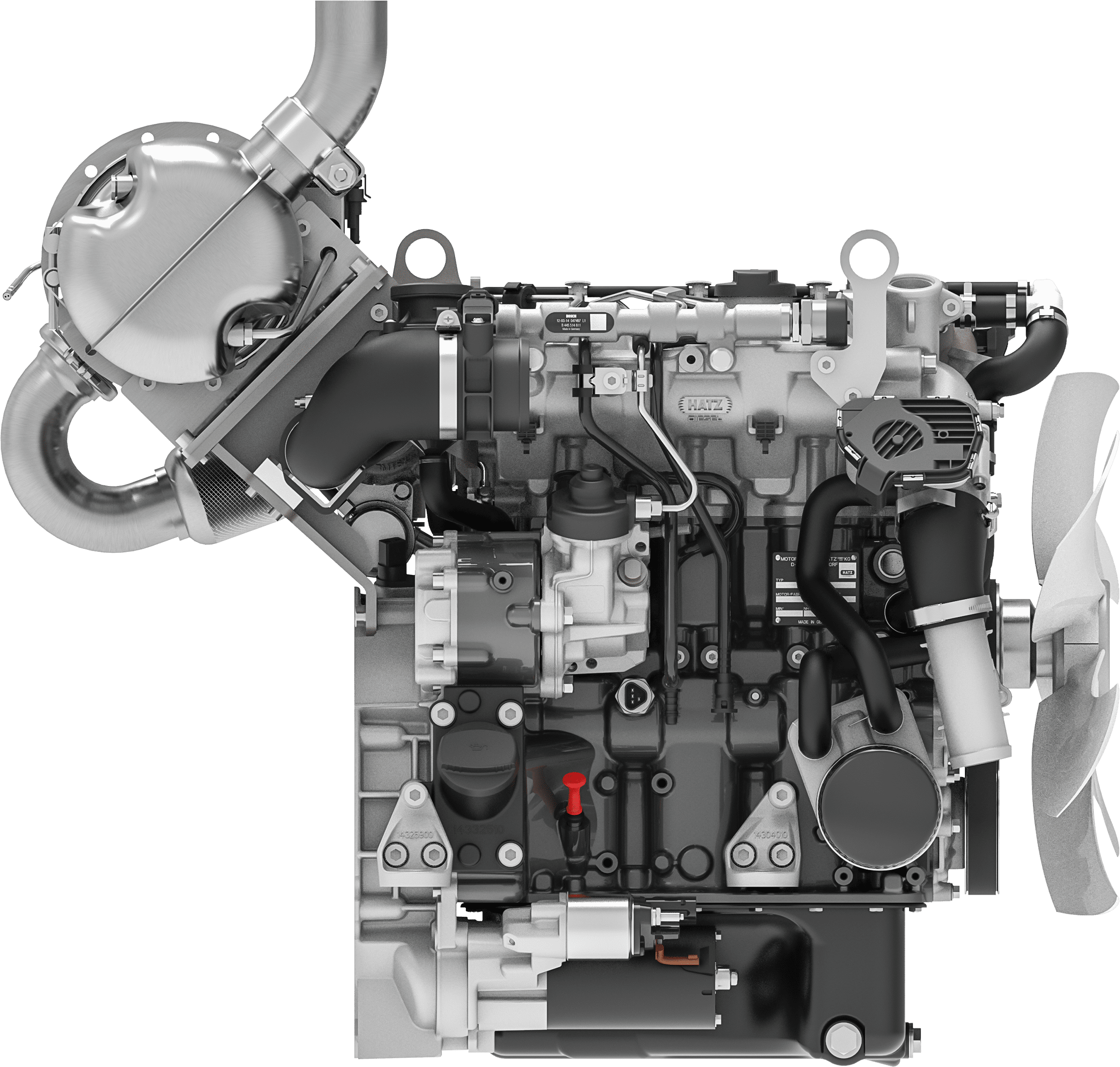

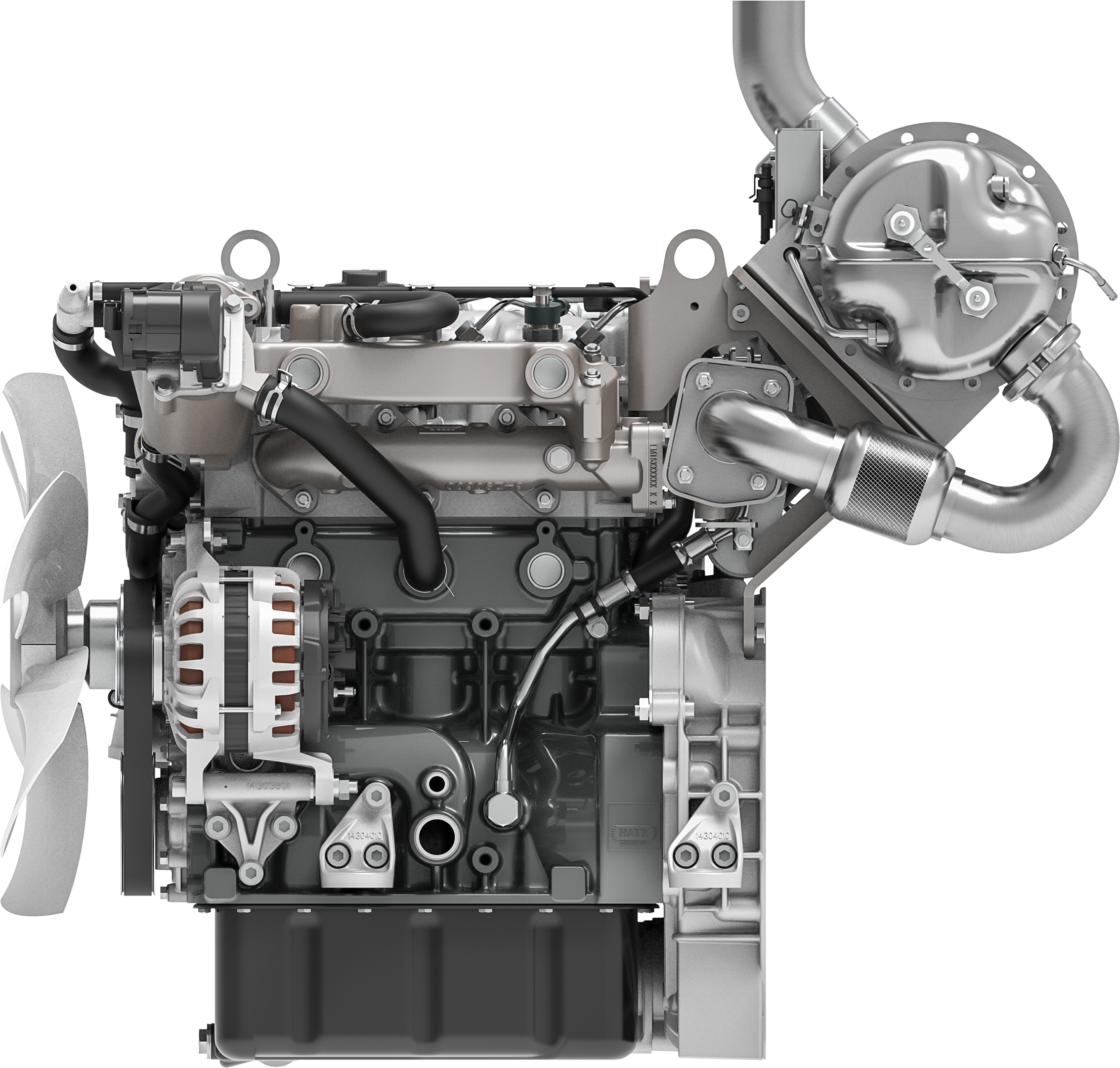

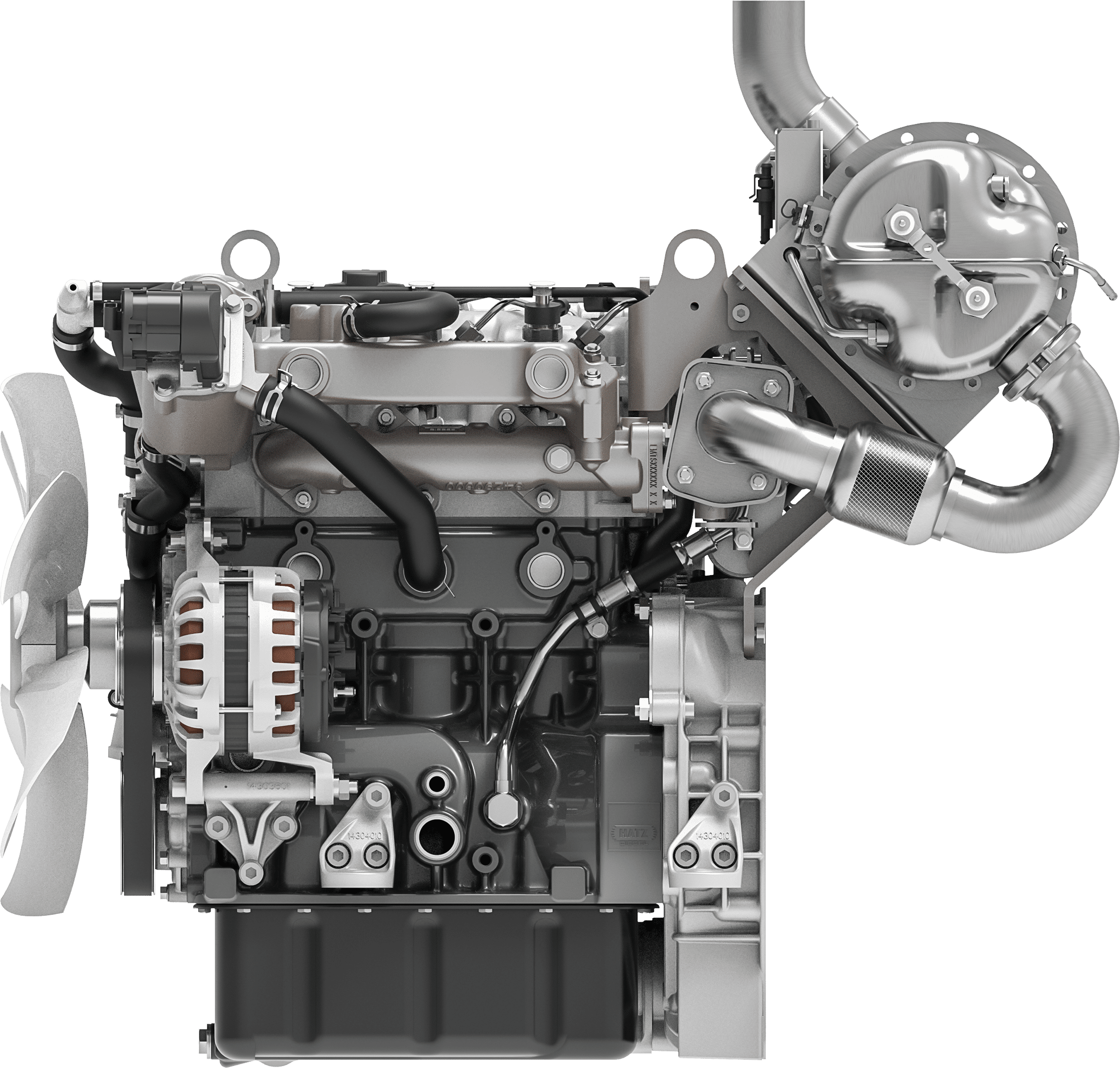

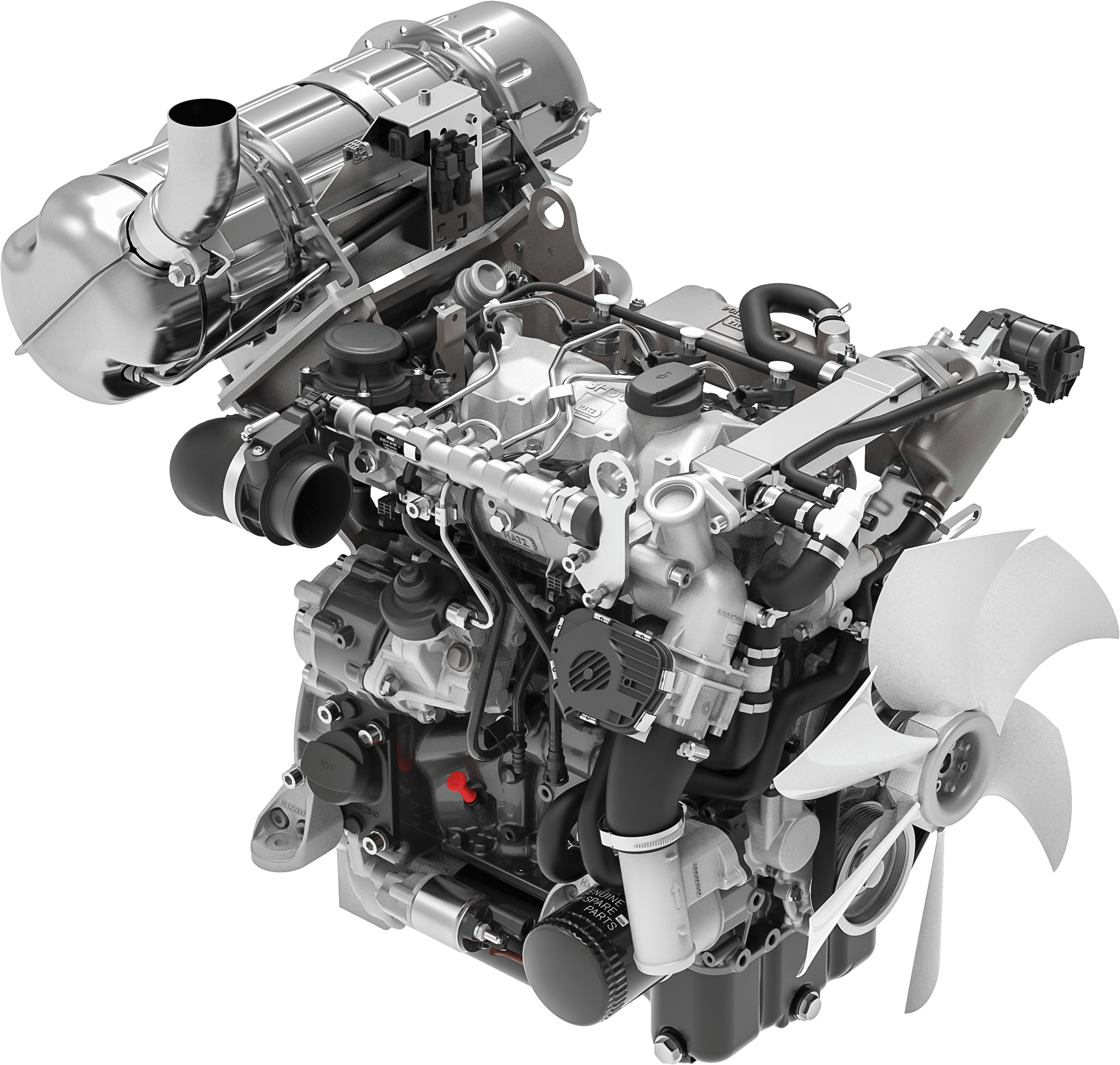

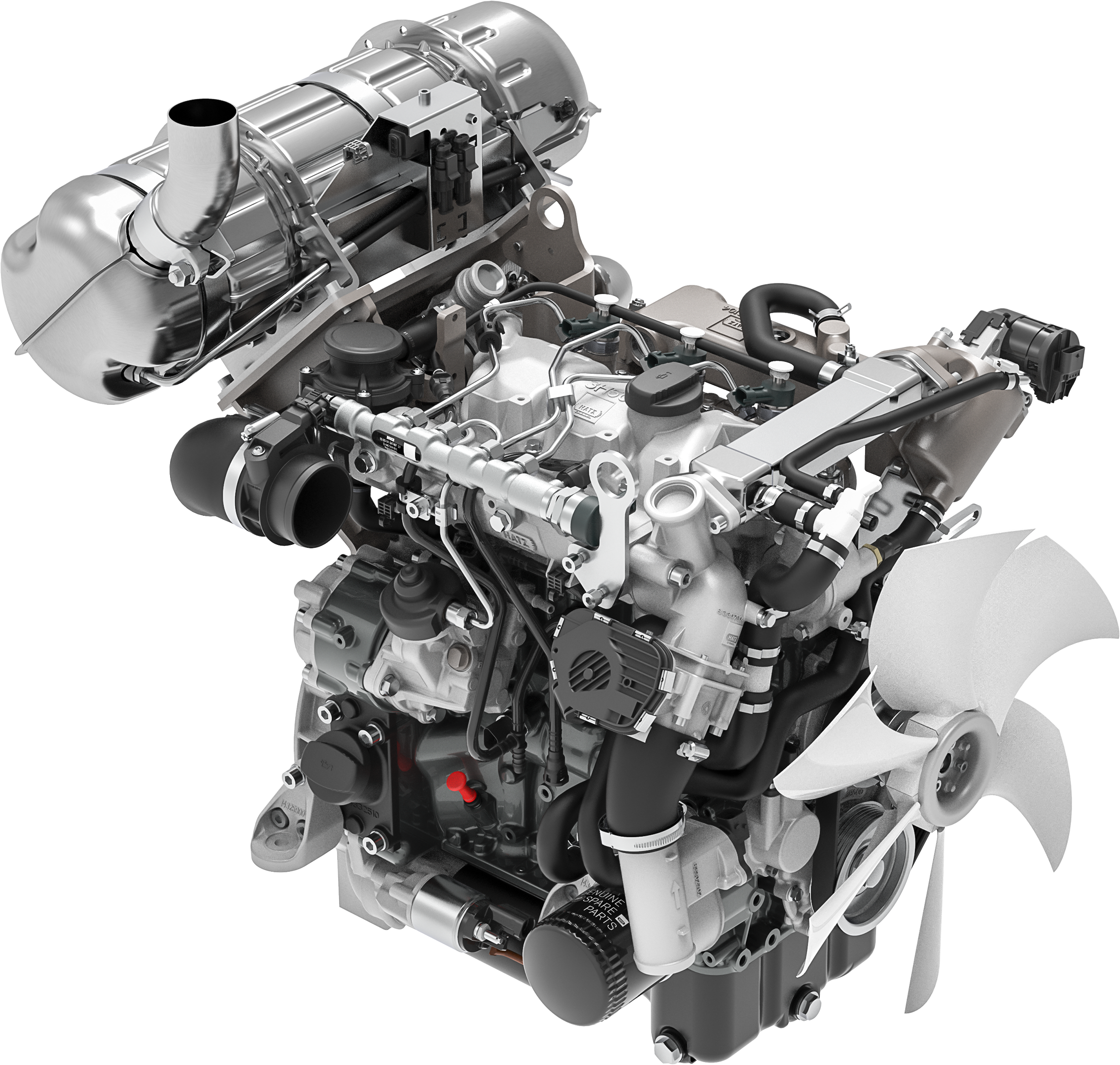

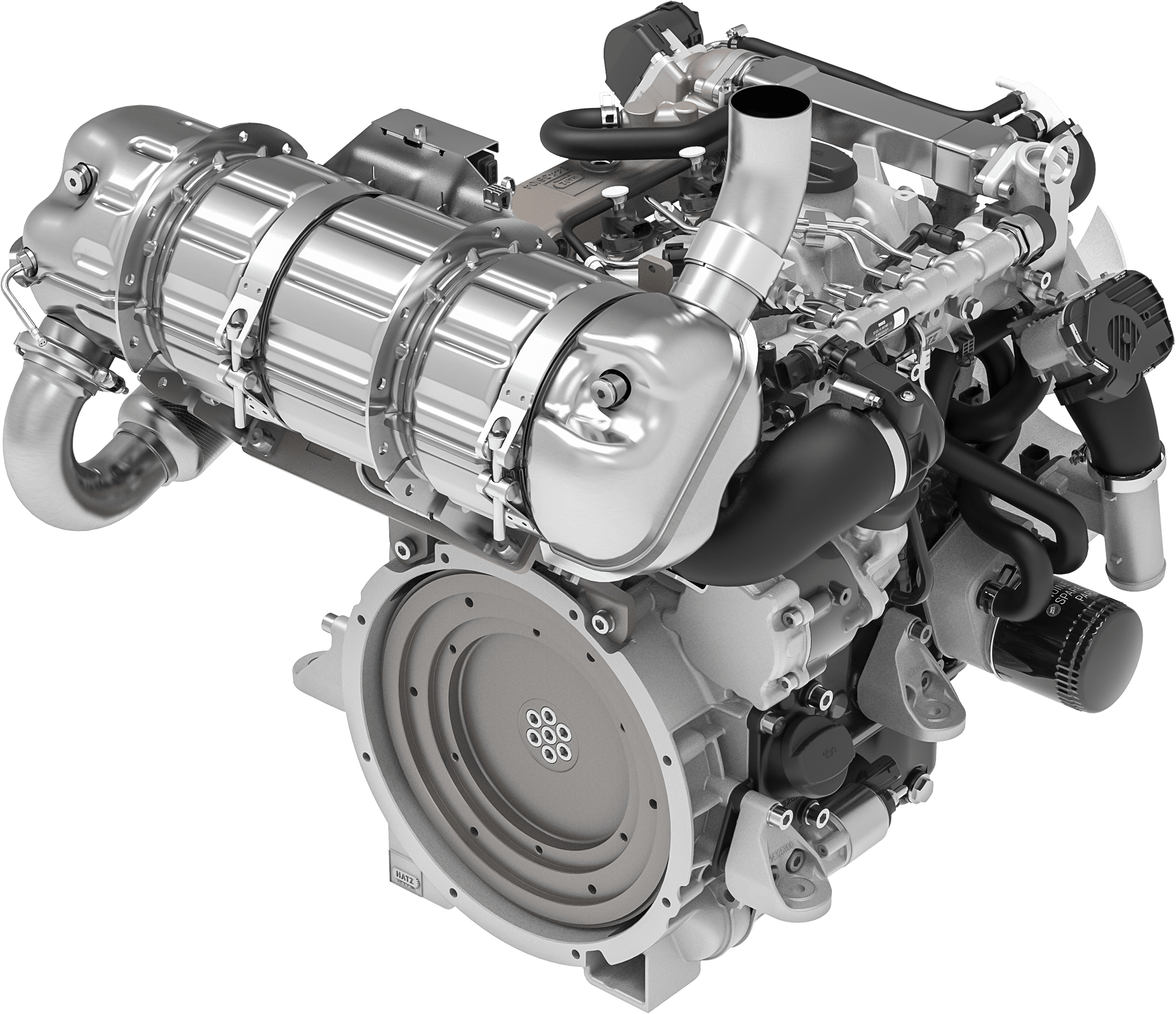

Hatz 3H50TICD
Part No: 3H50TICD
Hatz

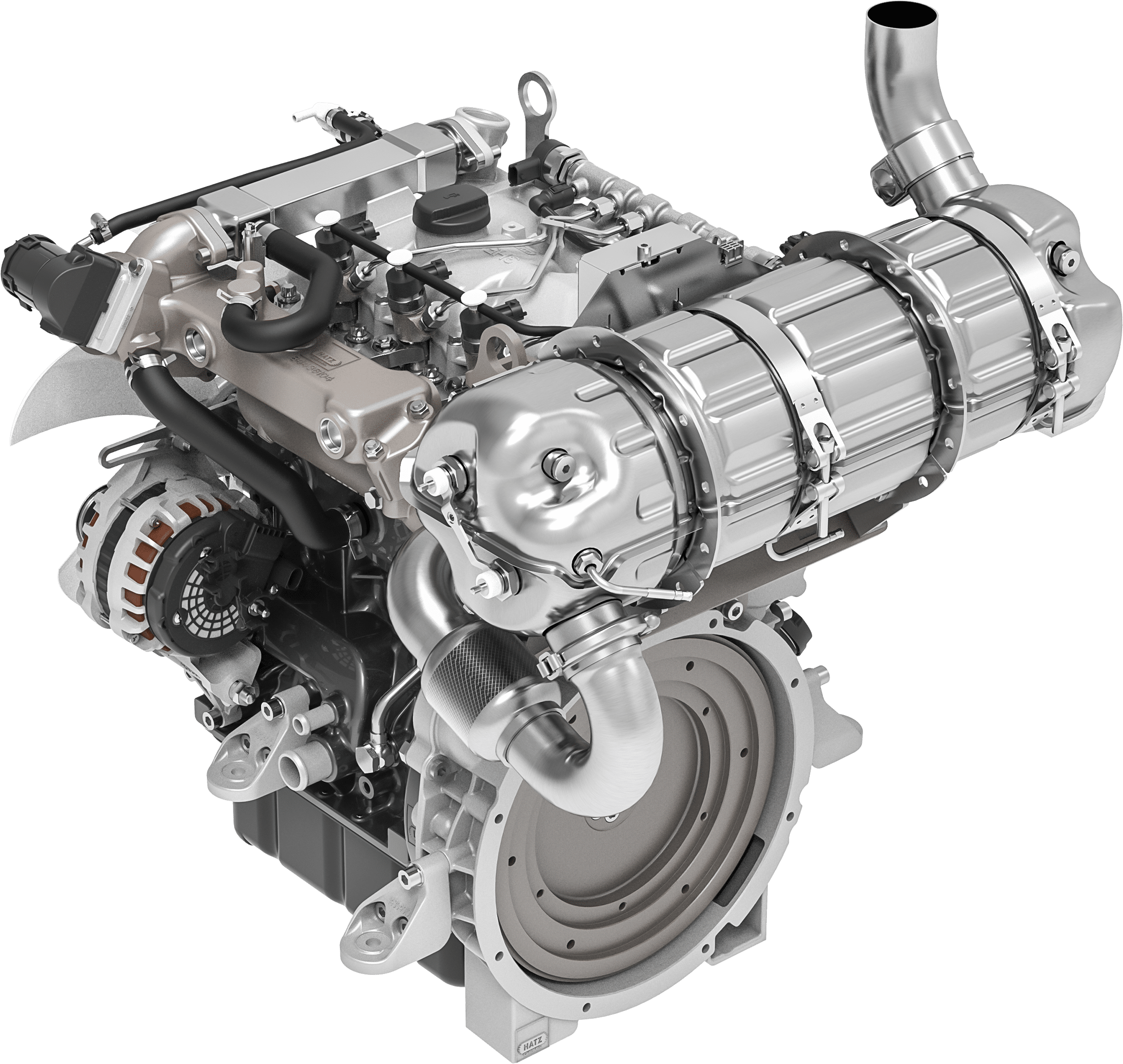

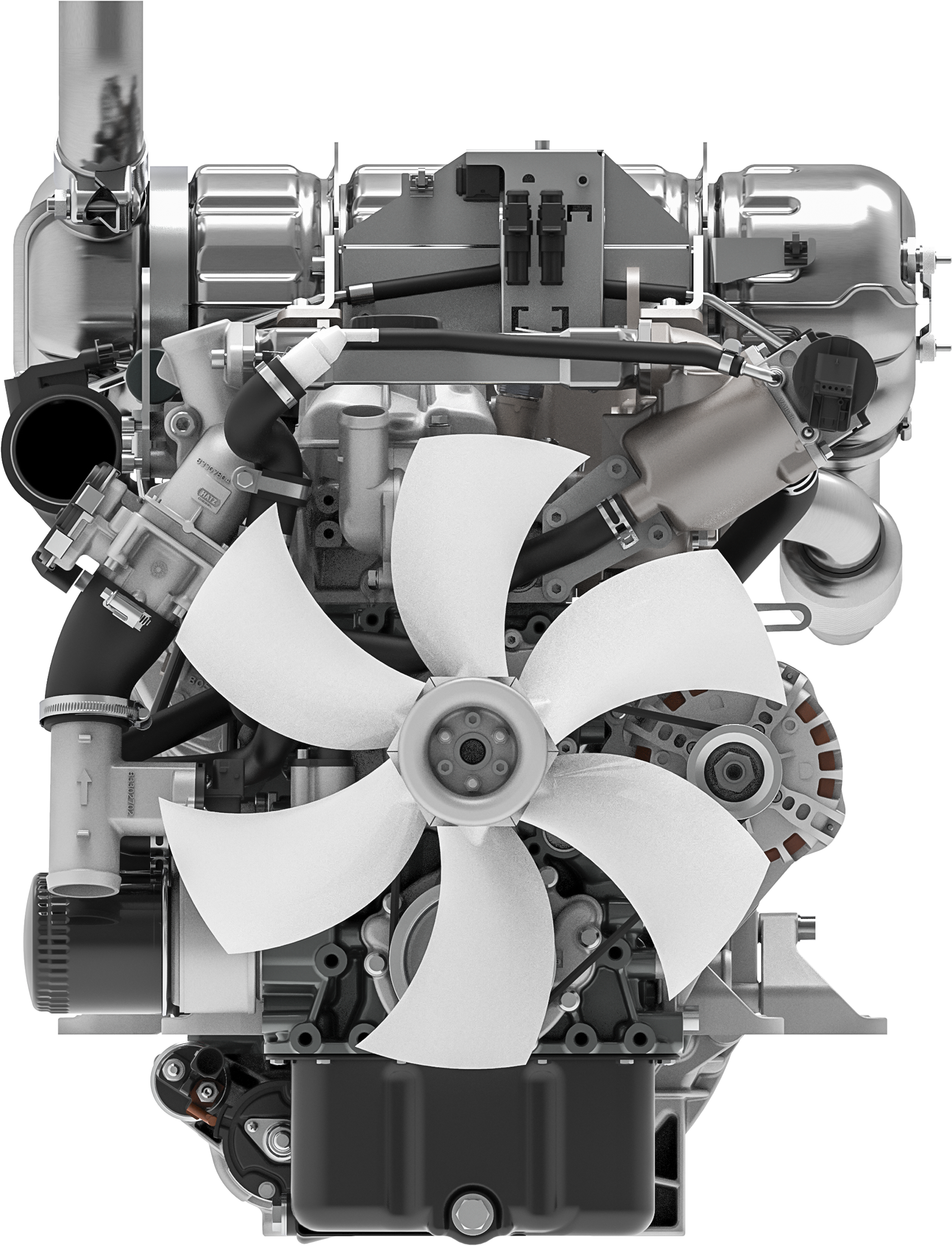

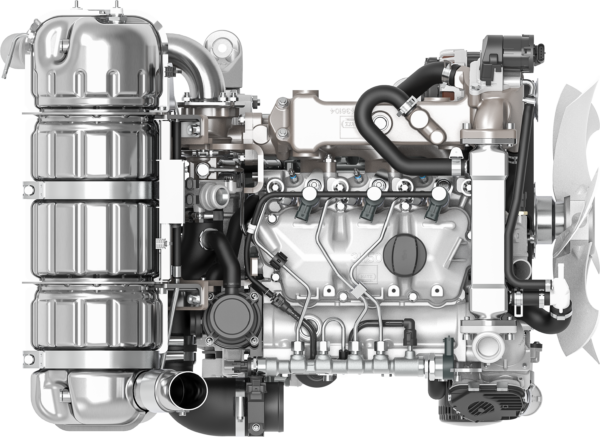

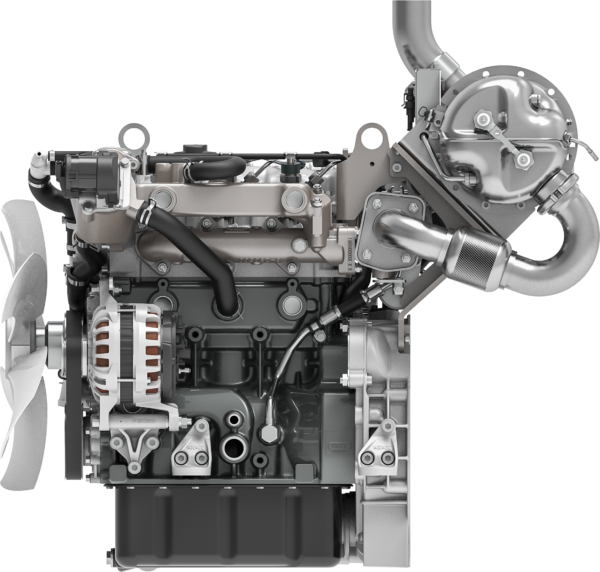

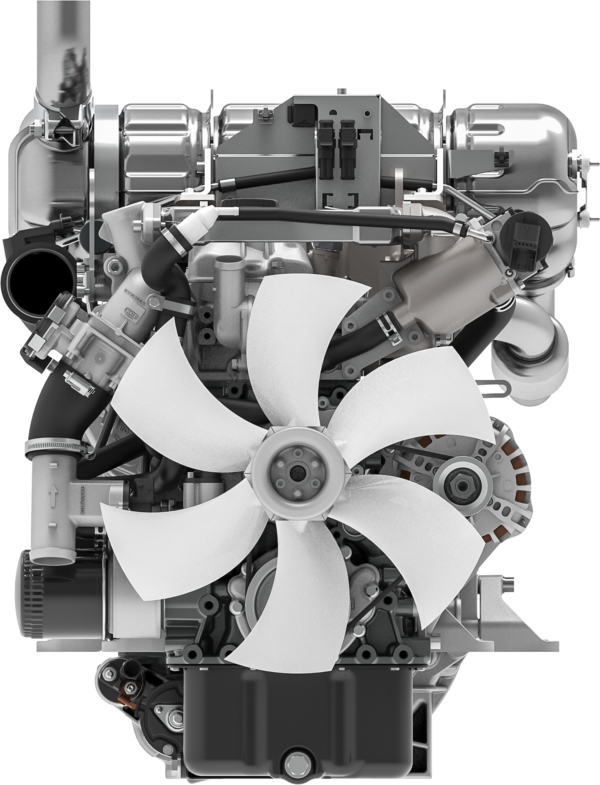

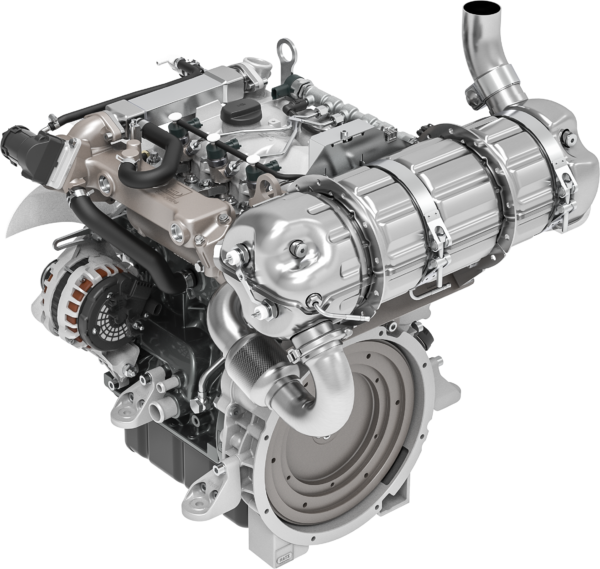

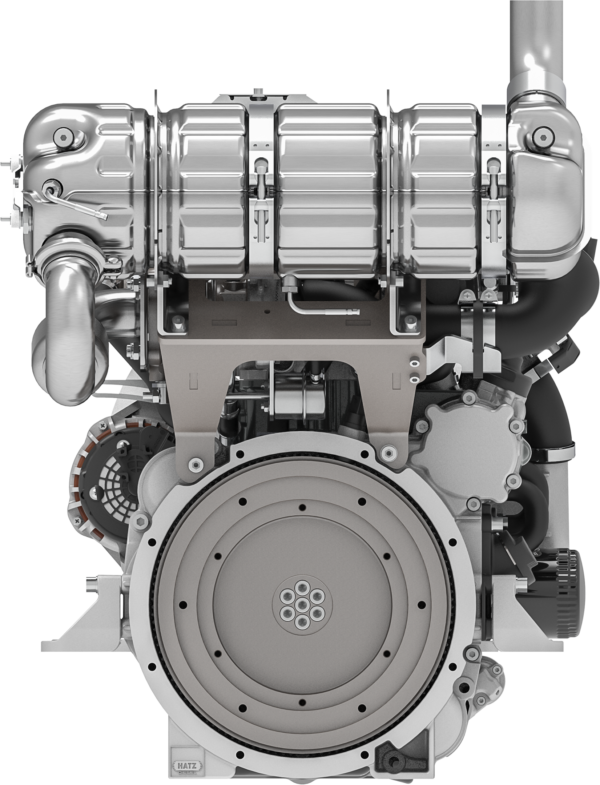

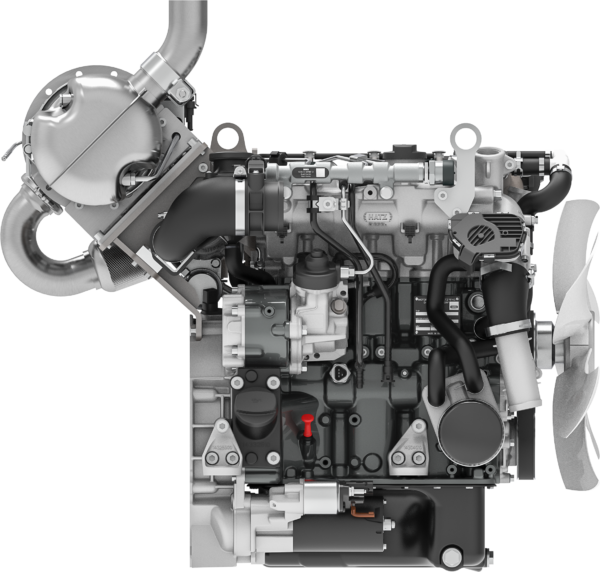

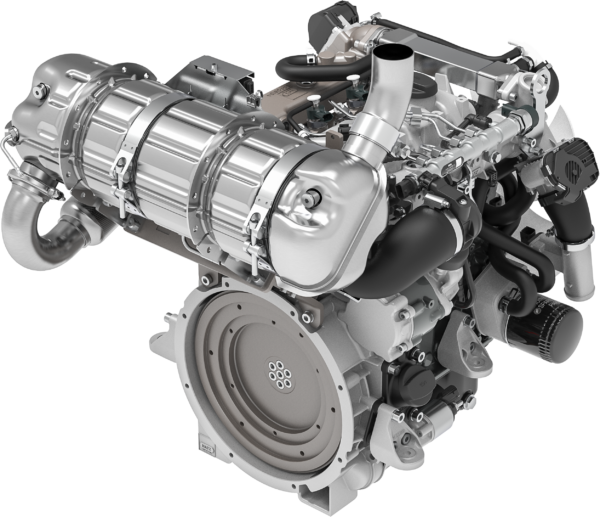

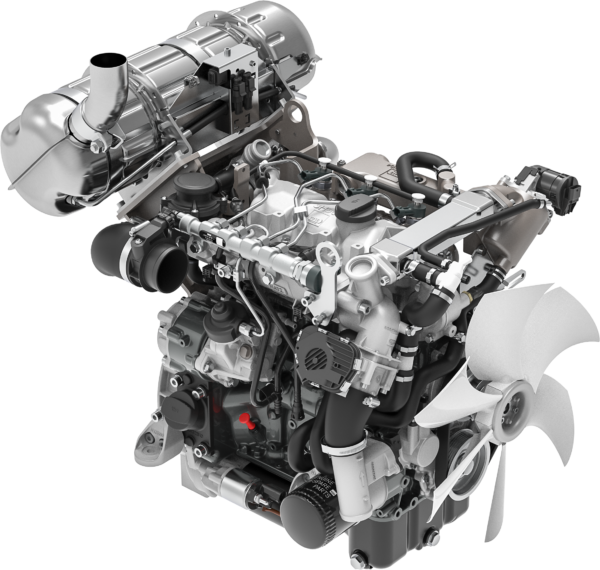

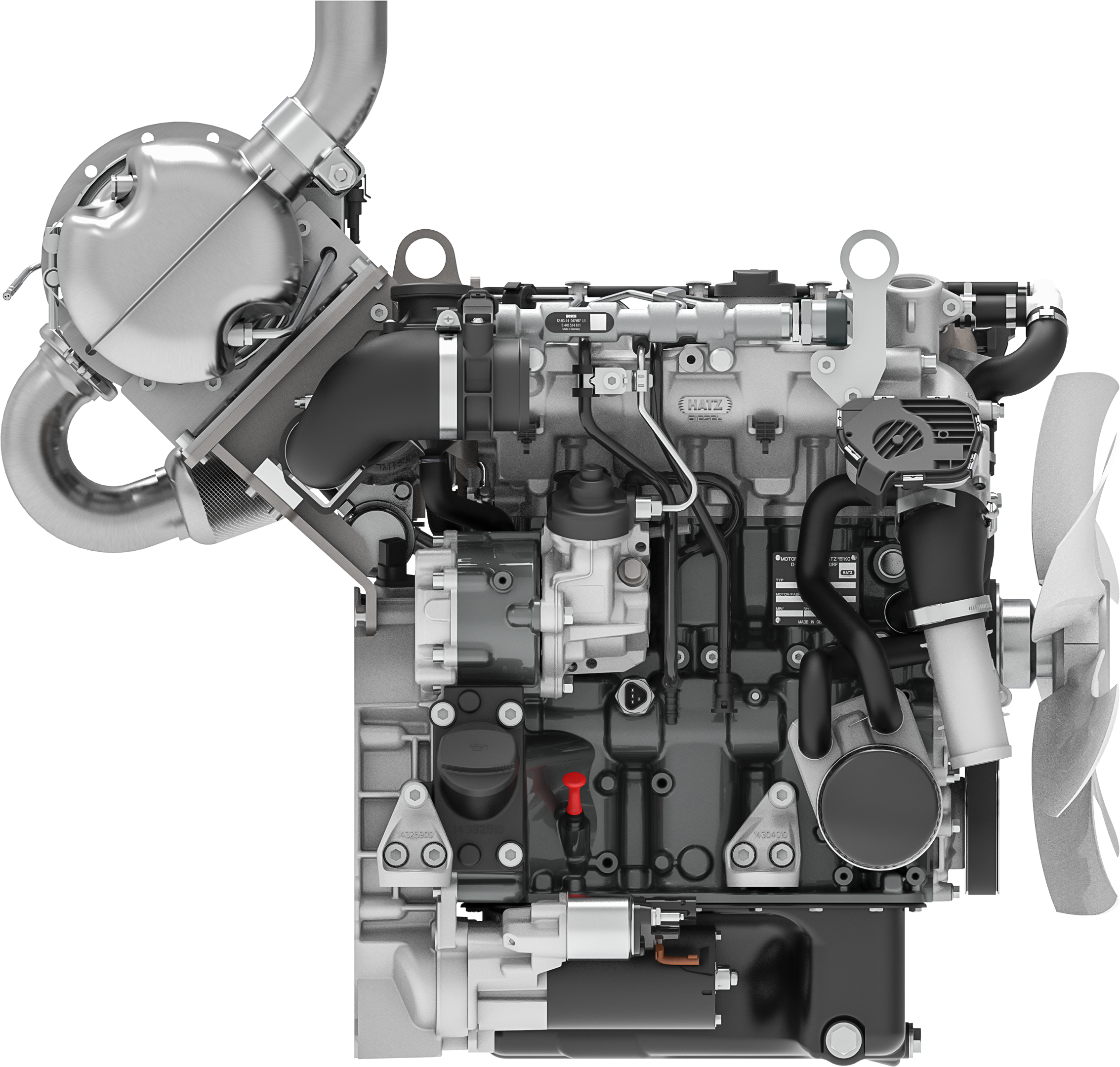

The Hatz 3H50TI engine is a modern 3-cylinder diesel engine.
- Power from 22.6 to 43.7 kW
- max. torque 203 Nm
- Bosch OHW common rail system with 1800 bar
- exhaust-gas turbocharger with intercooler
- Diesel particulate filter (DPF)
- EU Stage V and EPA Tier 4 final certified
Description
The Hatz 3H50TICD engine is a modern 3-cylinder diesel engine.
- Power from 22.6 to 43.7 kW
- max. torque 203 Nm
- Bosch OHW common rail system with 1800 bar
- exhaust-gas turbocharger with intercooler
- Diesel particulate filter (DPF)
- EU Stage V and EPA Tier 4 final certified
Construction
- water cooled 3-cylinder Diesel engine
- Upright cylinders arranged in series
- Crankcase made of grey cast iron
- Cylinder head with integrated intake manifold
- direct injection with Bosch common rail-system
- Pressurized lubrication with easy-change filter
- Valve timing via rocker arm, hydraulic push rods and camshaft in block
- maintenance free 2-valve technology
- integrated engine protection
- available as Open Power Unit including radiator, intercooler, pipes and harness
Characteristics
- ready to install and use
- usable in a broad variety of applications like mobile, stationary and work machinery
- robust and durable design
- easy to service with 500 hours standard interval
- low fuel consumption
- lowest power to weight ratio in its class
Additional information
| Brand | Hatz |
|---|---|
| Cooling | Water Cooled |
| Cylinders | 3 |
| Emissions | EU Stage IV / Tier 4, EU Stage V |
| Max Power kW | 40 kW – 50 kW |
