Hatz 3H50T
Part No: 3H50T

Hatz

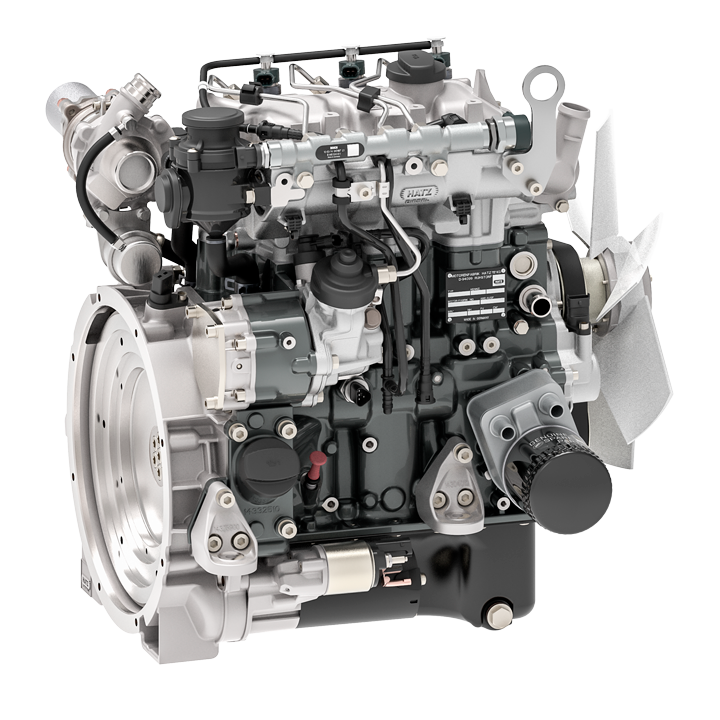

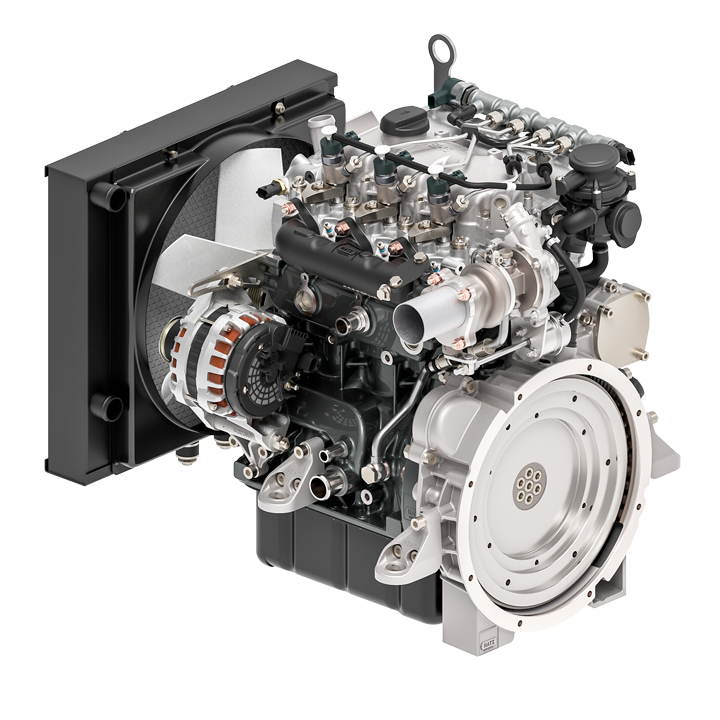

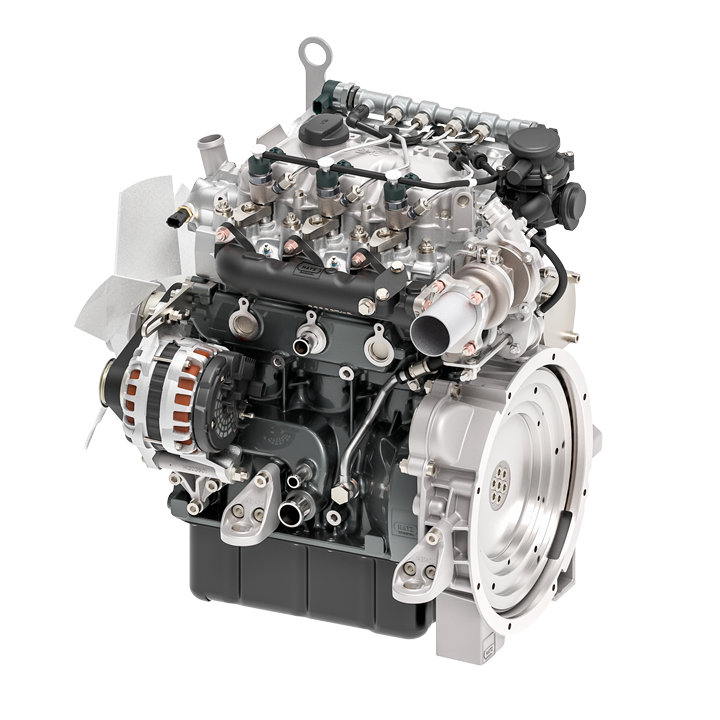

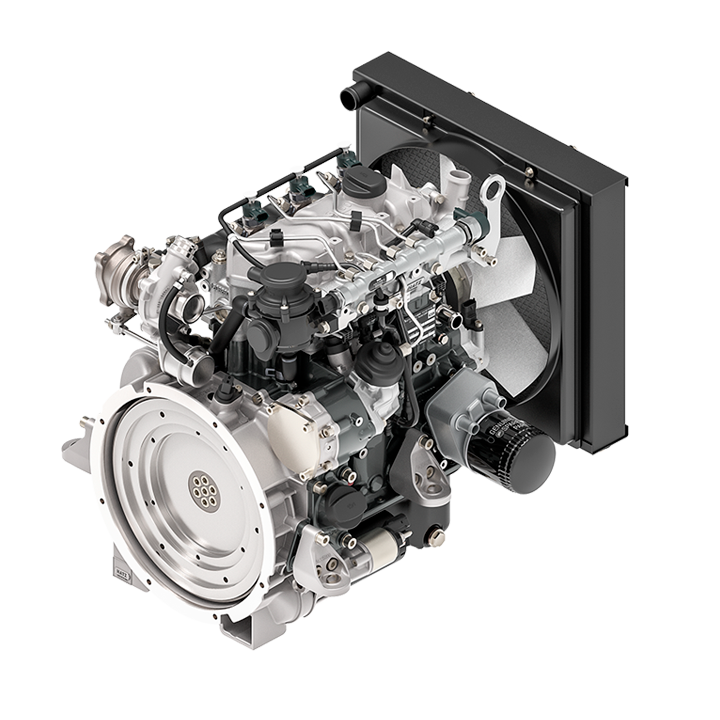

The Hatz 3H50T engine is a modern 3-cylinder diesel engine.

  • Power up to 18.4 kW
  • max. torque 130 Nm
  • Bosch OHW common rail system with 1800 bar
  • exhaust-gas turbocharger, without intercooler
  • No exhaust after-treatment required such as EGR, DOC or DPF
  • EU Stage V, EPA Tier 4 final and less regulated markets

SKU: 3H50T Categories: ,

Description

The Hatz 3H50T engine is a modern 3-cylinder diesel engine.

  • Power up to 18.4 kW
  • max. torque 130 Nm
  • Bosch OHW common rail system with 1800 bar
  • exhaust-gas turbocharger, without intercooler
  • No exhaust after-treatment required such as EGR, DOC or DPF
  • EU Stage V, EPA Tier 4 final and less regulated markets

Construction

  • water-cooled 3-cylinder 4-stroke diesel engine
  • Upright cylinders arranged in series
  • Crankcase made of grey cast iron
  • Cylinder head with integrated intake manifold
  • direct injection with Bosch common rail-system
  • Pressurized lubrication with easy-change filter
  • Valve timing via rocker arm, hydraulic push rods and camshaft in block
    maintenance free 2-valve technology
  • integrated engine protection
  • available as Open Power Unit including intercooler, pipes and harness

Characteristics

  • ready to install and use
  • usable in a broad variety of applications like mobile, stationary and work machinery
  • robust and durable design
  • easy to service with 500 hours standard interval
  • extremely low fuel consumption
  • highest torque in its class
  • lowest power to weight ratio in its class

Additional information

Brand

Hatz

Cooling

Water Cooled

Cylinders

3

Emissions

EU Stage IV / Tier 4, EU Stage V

Max Power kW

10 kW – 20 kW
