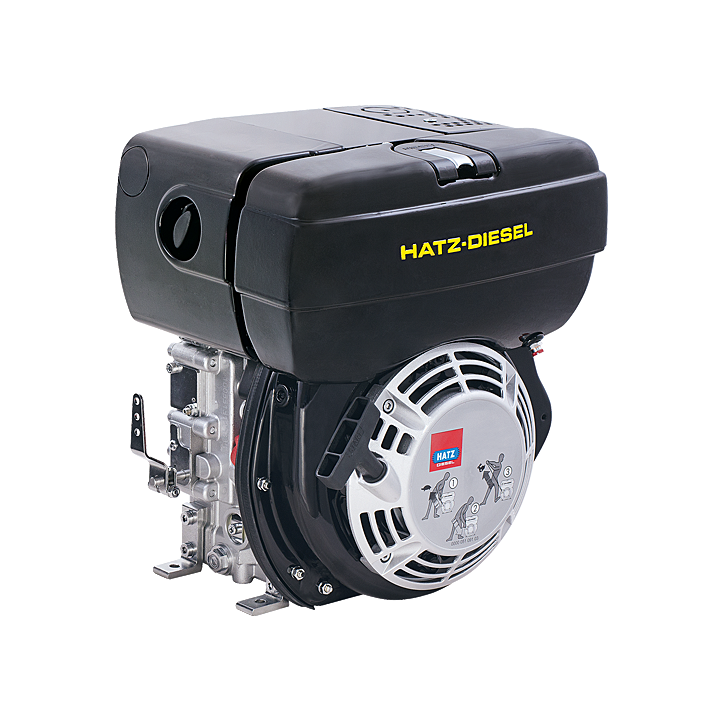

Hatz 1B30
Part No: 1B30
Hatz
The Hatz 1B30 is a small single-cylinder industrial diesel engine.
- Power from 2.3 to 5.0 kW
- max. torque 16.2 Nm
- Compact and lightweight construction
- Direct injection method
- Certified to EPA Tier IV final and EU Stage V
Description
The Hatz 1B30 is a small single-cylinder industrial diesel engine.
- Power from 2.3 to 5.0 kW
- max. torque 16.2 Nm
- Compact and lightweight construction
- Direct injection method
- Certified to EPA Tier IV final and EU Stage V
Construction
- Air cooled single-cylinder 4-stroke diesel engine
- Upright cylinder
- Crankcase made from die-cast light alloy
- Light alloy cylinder head
- Forged crankshaft
- Pressurized lubrication with fine filter in the main flow
- Valve timing via rocker arm, push rods, finger follower and camshaft
Characteristics
- Can be customized thanks to numerous options
- Lower fuel consumption
- Long service life
Additional information
| Brand | Hatz |
|---|---|
| Cooling | Air Cooled |
| Cylinders | 1 |
| Emissions | EU Stage IV / Tier 4, EU Stage V |
| Max Power kW | 5 kW – 10 kW |
